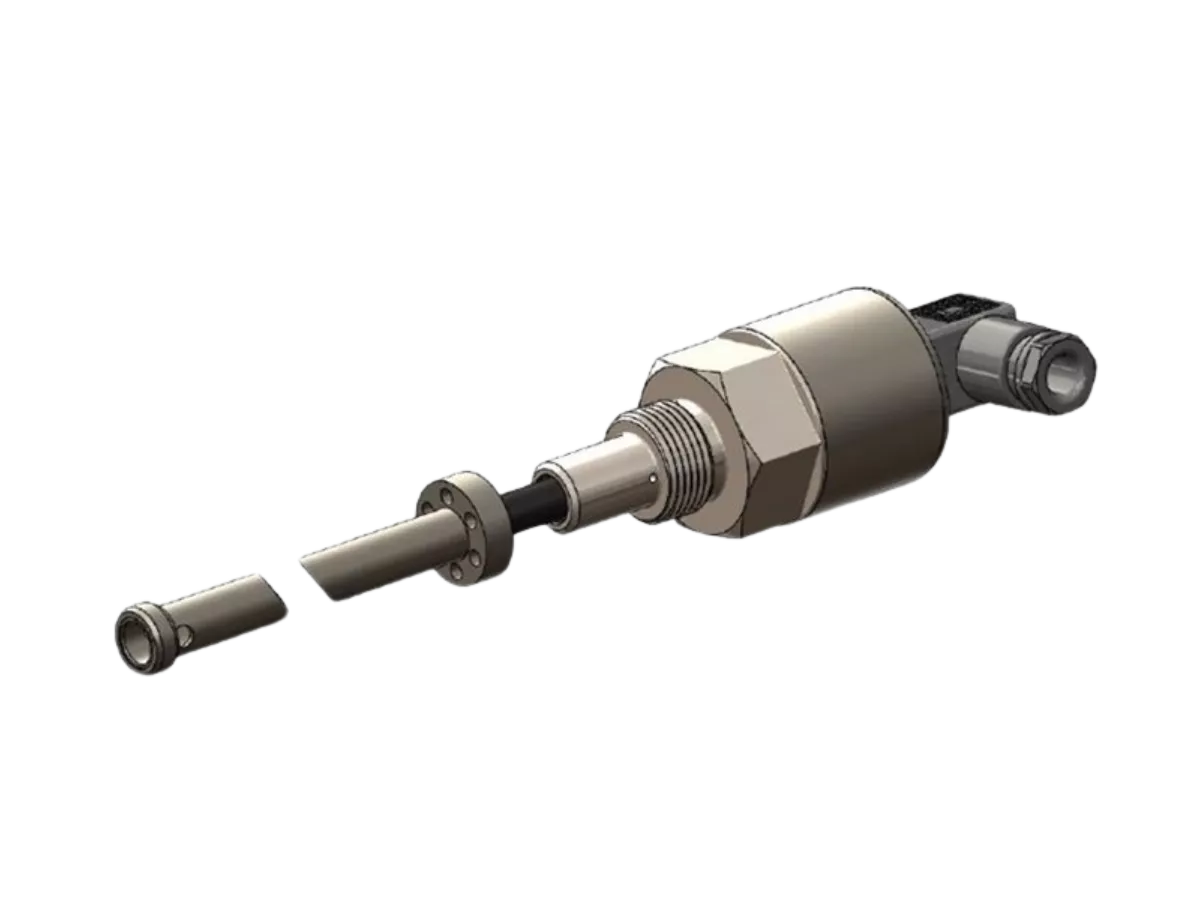

E130 Long stroke in-cylinder linear position sensor

Rugged, intrinsically safe position feedback for hydraulic and pneumatic cylinders. Calibrated to your stroke with stable, linear 0.5–4.5 V output.


Key features

  • Intrinsically safe ex ii 1gd (atex/iecex/ukex)
  • 0.5–4.5 v ratiometric output, 5 v supply
  • Custom travel 400–1485 mm, linear output
  • High durability, stainless steel build, ip67
  • Up to 350 bar cylinder pressure capable
  • Five-wire option for long cable runs

Performance highlights Long stroke in-cylinder linear position sensor

The e130 uses non-contact inductive technology for wear-free measurement and excellent repeatability over a wide temperature range. It offers a linear 0.5–4.5 v output proportional to travel, with frequency response >10 khz and noise <0.02% fso. Independent linearity is up to ±0.25% fso (≤450 mm), ±0.5% (≤600 mm) and ±1% (>600 mm).

Usage conditions

Approved ex ii 1gd (ex ia iic t4 ga and ex ia iiic t135°c da), operating −40…+80 °c, storage −40…+125 °c, sealing ip67. Designed for in-cylinder mounting and qualified for 350 bar hydraulic environments. Use with a galvanic isolation barrier (x005) for intrinsically safe installations.

Possible applications

  • Cylinder position feedback on mobile hydraulics
  • Process plant actuators in dust or gas zones
  • Pneumatic cylinder stroke monitoring
  • Long-stroke industrial presses and jacks

Advantages of choosing this product

Compact body with near full-length responsiveness simplifies integration. Travel is factory-set to your requirement, reducing setup time. Five-wire sensing compensates cable losses for accurate readings on long runs. Stainless steel construction and fluoropolymer-sheathed probe support long service life.

Other important features

  • Body Ø35 mm; body length 43 mm to seal face
  • Target tube length = travel + 30 mm; Ø9.45 mm
  • M20×1.5, 3/4-16 unf, or m18×1.5 mounting threads
  • Connector m12 or cable gland options; 3- or 5-core cables

Do you need this sensor for your next project?

Request a no-obligation quote or send us your contact details for a free, no-obligation consultation. Our sales engineers will then contact you within a maximum of 1 to 2 working days.

Talk to an expert

Talk to our experts

Not exactly what you are looking for? We offer standard sensors, but can also help you with sensors adapted for you or a fully customised measurement solution. Contact us for advice or pricing.

Talk to an expert

Technical Specifications

Specification Value
Body diameter 35 mm
Body length (to seal face) 43 mm
Probe length (from seal face) Calibrated travel + 58 mm
Target tube length Calibrated travel + 30 mm, Ø9.45 mm
Travel (factory set) Any 0–400 mm to 0–1485 mm
Independent linearity ≤ ±0.25% fso @20 °c to 450 mm; ≤ ±0.5% to 600 mm; ≤ ±1% over 600 mm
Temperature coefficients < ±0.01%/°c gain & < ±0.01% fso/°c offset
Frequency response >10 khz (−3 db)
Resolution Infinite
Noise <0.02% fso
Output/supply 0.5–4.5 v ratiometric; +5 v (4.5–5.5 v); ~10–12 mA
Intrinsic safety Ex ii 1gd; ex ia iic t4 ga (−40…+80 °c); ex ia iiic t135°c da (−40…+80 °c)
Sensor input parameters Ui 11.4 v, Ii 0.20 a, Pi 0.51 w; Ci 1.16 μf, Li 50 μh (connector); Ci 1.36 μf, Li 860 μh (cable, 1 km)
Operating/storage temp −40…+80 °c / −40…+125 °c
Sealing IP67
Hydraulic pressure 350 bar
EMC EN 61000-6-2, EN 61000-6-3
Vibration/shock IEC 68-2-6: 10 g / IEC 68-2-29: 40 g
MTBF 350,000 h @40 °c Gf
Mounting threads M20×1.5; 3/4-16 UNF; M18×1.5
Connections M12 4-pin connector; pre-wired 3-/5-core; cable gland options
