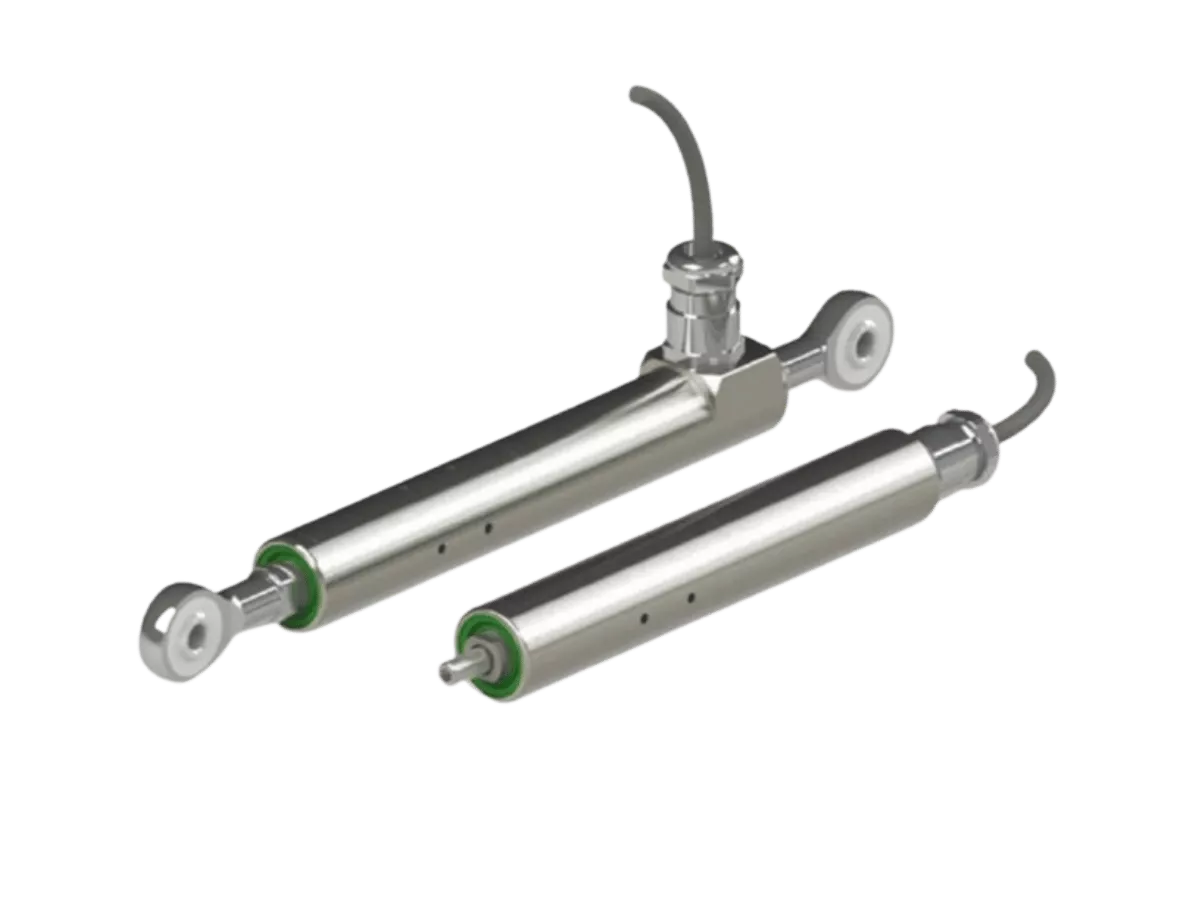

S119 Submersible slim-line linear position sensor

---

Key features

• Compact 19 mm stainless steel housing
• IP68 10 bar / IP69K environmental sealing
• Travel range configurable up to 350 mm
• Non-contact inductive technology ensures long service life
• High resolution and accuracy (≤ ±0.25% FSO)
• Suitable for harsh environments (−40 to +125 °C operating range)

---

Performance highlights S119 Submersible slim-line linear position sensor

The S119 is a slim-line, submersible linear position sensor designed to deliver high accuracy and long-term reliability under extreme conditions. It features non-contacting inductive technology that eliminates mechanical wear, resulting in an exceptionally long service life with MTBF of 350,000 hrs at 40°C.

Usage conditions

Engineered for operation in rugged environments, the S119 is ideal for applications in industrial machinery, marine systems, and mobile equipment. Its 316 stainless steel housing and IP68/IP69K-rated sealing ensure dependable performance even under deep water or high-pressure washdowns.

Possible applications

• Marine control systems
• Agricultural and off-road mobile equipment
• Industrial automation and machine feedback
• Hydraulics and cylinder stroke measurement
• Submerged machinery position feedback

Advantages of choosing this product

This sensor combines the ease of potentiometric devices with the lifespan of LVDTs. It delivers accurate linear displacement readings without moving electrical parts. Its modular design allows travel lengths from 5 mm to 350 mm, and it supports various output types such as voltage and current.

Other important features

• Axial or radial cable gland options
• Customizable push rod ends: M5 thread, dome, magnetic tip, rod-eye
• Captive or free rod configuration, optional spring return
• Output options: 0.5–4.5V, 0.5–9.5V, 4–20 mA
• Vibration-resistant up to 10 g, shock-resistant up to 40 g

---
