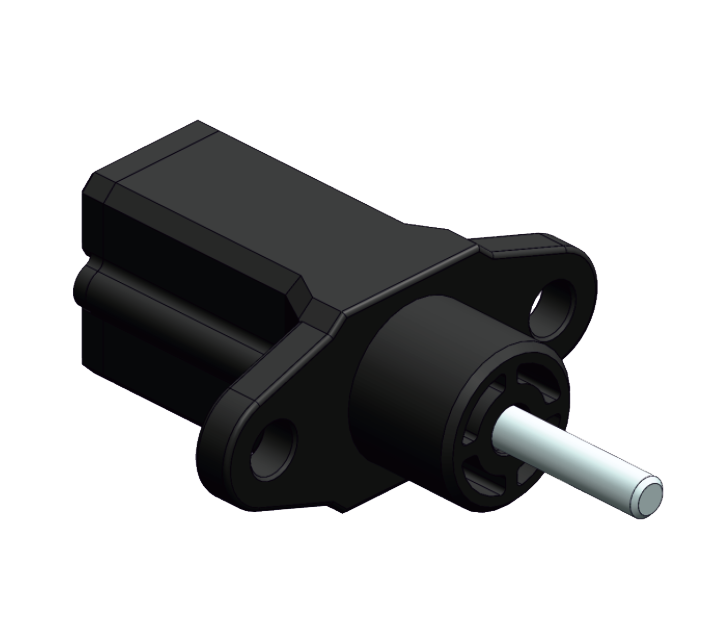

LRS Linear Potentiometer
Ultra Slim Body Series
Key features
- Measuring range 10 - 25 mm
- Long mechanical life
- Excellent repeatability <0.01 mm
- Infinite resolution
- 2 kΩ Resistance: 10 - 25 mm
Do you need this sensor for your next project?
Request a no-obligation quote or send us your contact details for a free, no-obligation consultation. Our sales engineers will then contact you within a maximum of 1 to 2 working days.
Product downloads
Talk to our experts
Not exactly what you are looking for? We offer standard sensors, but can also help you with sensors adapted for you or a fully customised measurement solution. Contact us for advice or pricing.
Talk to an expertTechnical Specifications
| Specification | Value |
|---|---|
| Displacement speed | < 5 m/s |
| Electrical connections | Cable output |
| Ip degree | IP 65 |
| Linearity | ±%0,5 (<75 mm) |
| Load resistance | 100 kOHM min. |
| Measurement stroke | 10 to 25 mm |
| Mechanical life | 50 million movement |
| Operating temperature | -20°C ... +80°C |
| Permissible applied voltage | 28 VDC max. |
| Repeatability | <0,01 mm |
| Resistance | 2 kOhm |
| Resistance tolerance | ± %20 |
| Resolution | Infinite |
| Storage temperature | -30°C ... +90°C |
