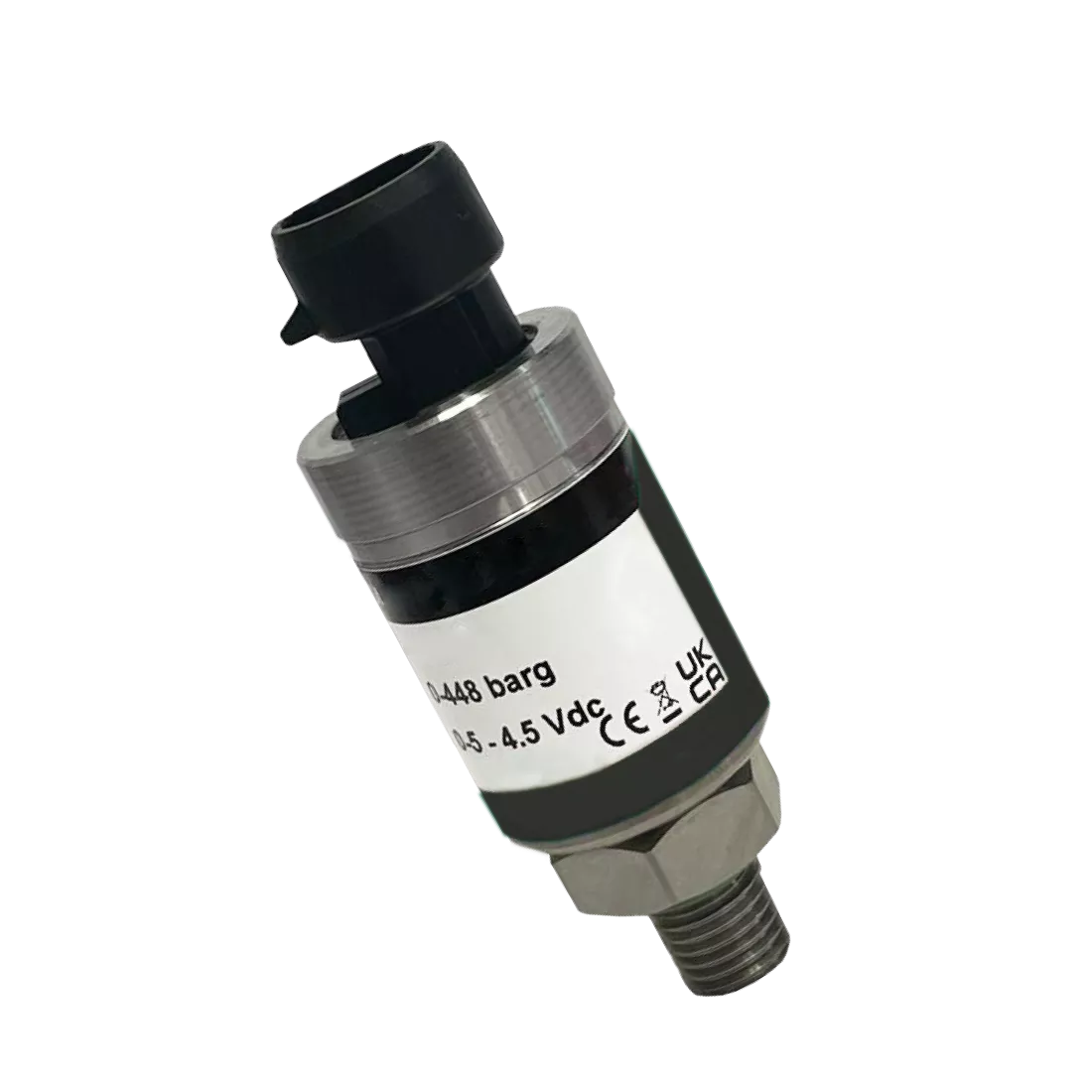

AHI6200 Compact OEM Pressure Transmitter
A compact, high-precision, durable OEM pressure transducer
Key features
- Specialist High Strength titanium alloy sensor
- Excellent Corrosion resistance and high resistance to overpressure
- Compact design with Metri-Pack 150 connection (otheroptions available)
- Silicon-on-Sapphire sensor technology for outstanding performance
- Pressure ranges to 5000 bar
About the AHI6200 Compact OEM Pressure Transmitter
The AHI6200 Compact OEM Pressure Transducer is a highly accurate and durable sensor capable of withstanding over pressure levels of up to twice the stated pressure range. The compact design allows for installation in the most space conscious environments.
This product is an excellent choice for demanding applications. Its compact design, featuring a Metri-Pack 150 connection (with other options available), ensures easy integration and versatility.
In addition, the transducer incorporates advanced Silicon-on-Sapphire sensor technology, delivering outstanding performance and reliability.
With pressure ranges extending up to 5,000 bar, the device is built with a specialist high-strength titanium alloy sensor that offers superior durability. Furthermore, its excellent corrosion resistance and high resistance to overpressure make it a robust and reliable solution for challenging operational environments.
Key features
- Compact design with Metri-Pack 150 connection (otheroptions available)
- Silicon-on-Sapphire sensor technology for outstanding performance
- Pressure ranges to 5000 bar
- Specialist High Strength titanium alloy sensor
- Excellent Corrosion resistance and high resistance to overpressure
Applications
- Hydraulic systems
- Oil, gas, water and other process liquid monitoring.
Do you need this sensor for your next project?
Request a no-obligation quote or send us your contact details for a free, no-obligation consultation. Our sales engineers will then contact you within a maximum of 1 to 2 working days.
Product downloads
Talk to our experts
Not exactly what you are looking for? We offer standard sensors, but can also help you with sensors adapted for you or a fully customised measurement solution. Contact us for advice or pricing.
Talk to an expertTechnical Specifications
| Specification | Value |
|---|---|
| Output Signal | 0.5-4.5 V ratiometric (3 wire) / 0-5 V (4 or 3 wire) / 0-10 V (4 or 3 wire) / 4-20 mA (2 wire) |
| Supply Voltage | 4.8-5.5 VDC / 10-32 VDC / 12-32 VDC / 10-36 VDC |
| Pressure Reference | Gauge |
| Protection of Supply Voltage | Reverse polarity, overvoltage up to 36VDC |
| Standard Pressure Ranges (bar) | 0 -1.6 bar; 0-6 bar; 0 - 10 bar; 0 -16 bar; 0 - 25 bar; 0 - 100 bar; 0 - 250 bar; 0 -400 bar; 0 - 600 bar; 0 -1,000 bar; 0 - 1,500 bar; 0 - 5,000 bar (other ranges available) |
| Standard Pressure Ranges (psi) | 0-30 psi; 0-100 psi; 0-150 psi; 0-200 psi; 0-300 psi; 0-1500 psi; 0-3000 psi; 0-6000 psi; 0-8700 psi; 0-15000 psi; 0-20000 psi; 0-72000 psi (other ranges available) |
| Overpressure Safety | 4x for 0.5 bar range; 2x for ranges -1 bar to 600 bar; 1.5x for 1000 bar range; 1.1x for 1500 bar range |
| Load Driving Capacity | ≥ 4.5KΩ / ≥ 5KΩ / ≥ 10KΩ / RL < [UB - 10 V] / 20 mA (e.g. with supply voltage (UB) of 36 V, max. load (RL) is 1300 Ω) |
| Accuracy NLHR | ≤ ±0.25 % of span BFSL |
| Zero Offset and Span Tolerance | ±0.5% FS at room temperature |
| Operating Temperatures | Ambient: -40 °C to +85 °C (-40 °F to +185 °F) / Media: -50 °C to +125 °C (-58 °F to +257 °F) |
| Storage Temperature | +5 °C to +40 °C (+41 °F to +104°F) Recommended Best Practice |
| Temperature Effects | ±1.5 %FS total error band for -20 °C to +70 °C. Typical thermal zero and span coefficients ±0.015 %FS /°C |
| Electromagnetic Compatibility: | Emissions: BS EN 61000-6-3: Immunity: BS EN 61000-6-2: Certification: CE/UKCA Marked |
| Insulation Resistance | > 100 MΩ @ 50 VDC |
| Response Time 10-90% | 1 mS |
| Pressure Media | All fluids compatible with Titanium alloy |
| Net Weight | 0.1 Kg |
