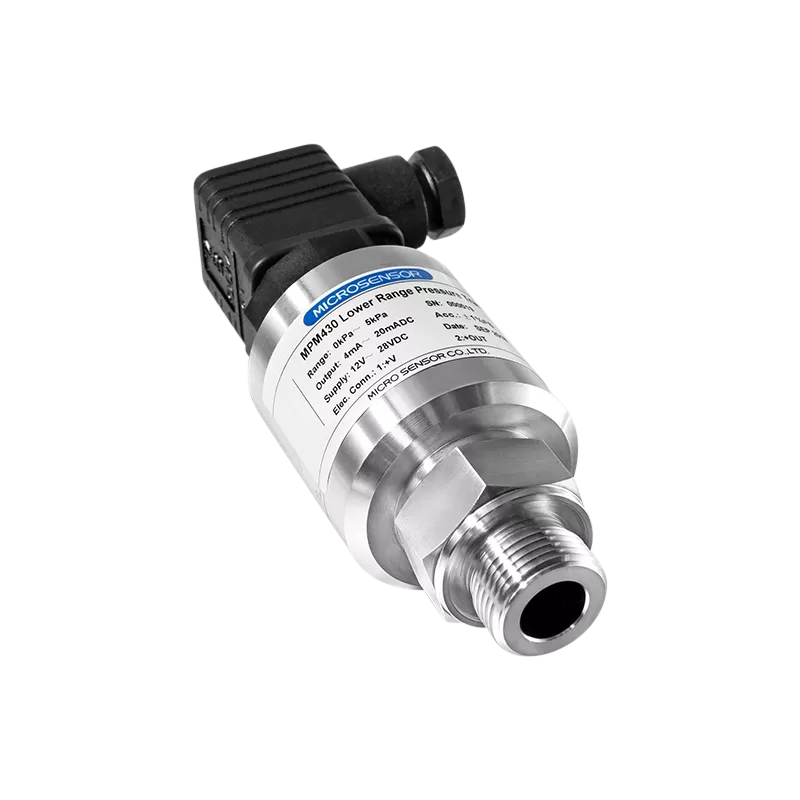

MPM430 Micro pressure transmitter

---

Key features

• High overload protection with ceramic diaphragm
• Measurement range down to -25 mbar
• Compact and corrosion-resistant stainless steel housing
• Intrinsically safe version Ex ia IIC T6 Ga available
• Excellent resistance to pressure shocks
• Output: 4–20 mA with 2-wire configuration

---

Performance highlights MPM430 Micro pressure transmitter

The MPM430 is a robust and highly compact micro pressure transmitter designed for applications requiring reliable measurement of very low pressures. With a ceramic sensing diaphragm and stainless-steel construction, it delivers excellent long-term stability and corrosion resistance.

Usage conditions

The transmitter operates in ambient temperatures from -30°C to +80°C (plug version) or up to +80°C for PUR cable type. Thermal drift is ≤±0.15%FS/10°C in standard conditions. The MPM430 features IP65 housing protection and weighs less than 150 g.

Possible applications

• Urban and industrial water supply systems
• Hydro exploration and environmental monitoring
• Low-pressure process control
• Petrochemical and mining operations
• Power generation facilities

Advantages of choosing this product

With its compact size and ceramic diaphragm, the MPM430 can handle pressure shocks and overloads several times its range, making it ideal for harsh environments. The non-cavity design also enhances measurement accuracy for low-pressure air or gas.

Other important features

• Output: 4–20 mA (2-wire), powered by 12–28V DC
• Wetted diaphragm material: 96% alumina ceramics
• Electrical connections: Hirschmann plug or cable (PUR, PE, PVC)
• Overpressure resistance up to 6 bar
• Pressure types: gauge, absolute, negative pressure
• Order options: connector type, cable material, Ex certification

---
