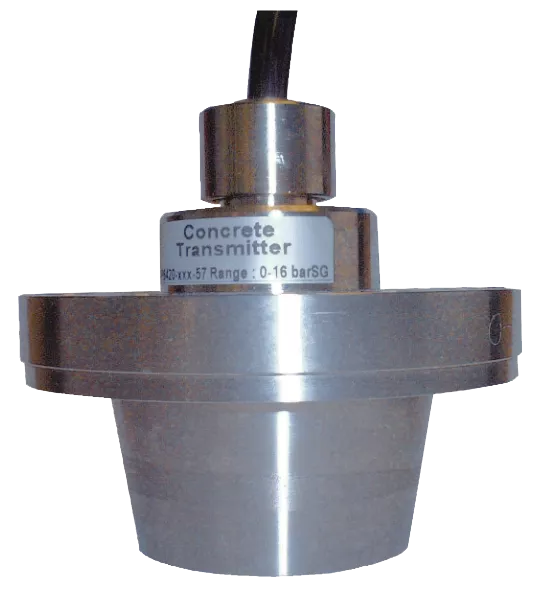

P6420-xxx-57 Liquid Concrete Pressure Sensor

Abrasive material transducer


Key features

  • Superb chemical and corrosion resistance
  • 4-20mA, two wire operation (option 5-21mA)
  • Unrivaled abrasion resistance
  • Wide temperature range
  • High electrical isolation
  • Rugged construction
  • Excellent long term stability

About the P6420-xxx-57 Liquid Concrete Pressure Sensor

The P6420-57 is a pressure transducer having a two wire, 4-20mA output. It is available in standard ranges from 5 bar to 50 bar, or may be scaled to customer requirements.

The P6420-57 pressure transducer is based on a four active arm strain gauge bridge fused to a high purity ceramic diaphragm, offering high natural output coupled with superb chemical and corrosion resistance. It has been designed primarily for use with concrete slurry and other abrasive fluids and has a cavity free, flush sensing diaphragm covered by a flexible polypropylene shield.

It offers a two wire, 4-20mA output proportional to fluid pressure with other outputs available as options. The sensing element and its associated electronics are housed in a rugged stainless steel case.

Order Code P6420-xxx-57:
xxx = 005 ............ 5 bar sg and g
xxx = 010 ............ 10 bar sg and g
xxx = 020 ............ 20 bar sg and g
xxx = 050 ............ 50 bar sg and g

Do you need this sensor for your next project?

Request a no-obligation quote or send us your contact details for a free, no-obligation consultation. Our sales engineers will then contact you within a maximum of 1 to 2 working days.

Talk to an expert

Talk to our experts

Not exactly what you are looking for? We offer standard sensors, but can also help you with sensors adapted for you or a fully customised measurement solution. Contact us for advice or pricing.

Talk to an expert

Technical Specifications

Specification Value
Accuracy 1.0%
Burst pressure 3 times rated range minimum
Electrical connections Cable
Environmental protection IP68
Insulation/isolation resistance >500 MOhm at 500 Vdc, over the operable temperature range
Loading driving 1 kOhm @ 28 Vdc supply
Measurement range 0 - 5 bar to 0 - 50 bar
Operating temperature -25 to +100 °C
Output 4 - 20 mA [10 - 32 VDC]
Pressure type gauge
Safe over-range 1.5 times rated range
