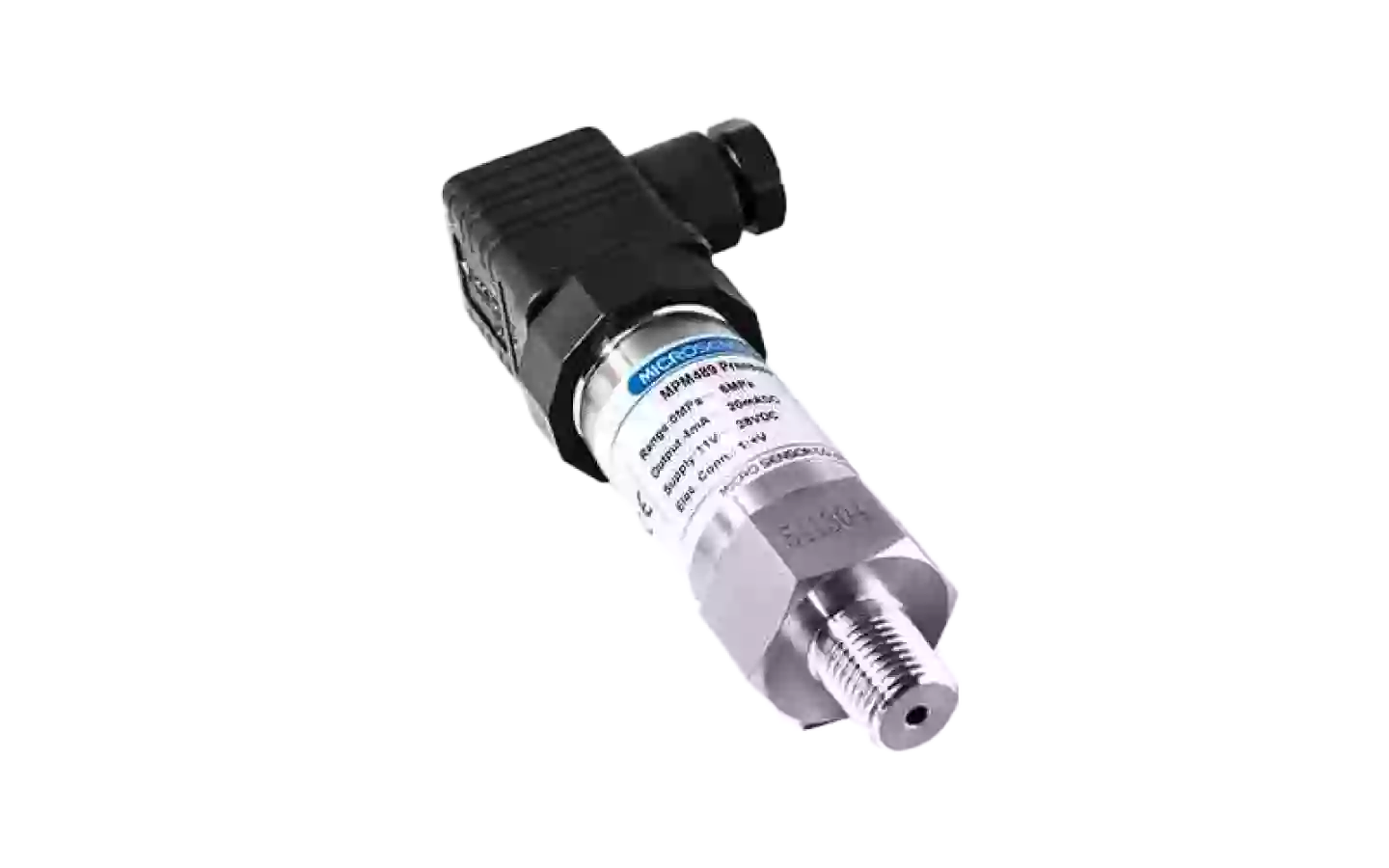

MPM489 ATEX pressure transmitter
The MPM489 is a robust pressure transmitter with wide measurement ranges, stable piezoresistive sensing, and multiple output signals. Designed for harsh and hazardous environments.
Key features
- Intrinsically safe & explosion-proof versions
- Stainless steel housing for harsh environments
- Measurement ranges from -1 bar to 1000 bar
- Multiple output signals: 4–20 mA, 0–10 V, etc.
- Various electrical & process connections
- CE, RoHS, ATEX and CCS approved
Performance highlights MPM489 ATEX pressure sensor
The MPM489 pressure transmitter offers high-accuracy measurements across a wide pressure range from -1 bar up to 1000 bar. Built with a piezoresistive sensing element and a dedicated signal-conditioning circuit, it delivers reliable and stable output over time.
Usage conditions
Designed for extreme environments, the MPM489 can operate in temperatures ranging from -30°C to +80°C (depending on model) and withstands vibration (10g) and shock (100g). With IP65 protection and stainless steel housing, it's ideal for demanding industrial applications.
Possible applications
- Hydrology and water resource monitoring
- Oil & gas and petrochemical systems
- Industrial automation and process control
- Pneumatic and hydraulic systems
- Power generation equipment
Advantages of choosing this product
Thanks to its wide selection of pressure ranges, robust design, and industry-standard outputs, the MPM489 is a flexible and cost-effective pressure monitoring solution for OEMs and end users. It's available with ATEX and ship-use certification, making it suitable for hazardous areas.
Other important features
- Available in gauge, absolute, or sealed gauge versions
- Output signal options: 4–20 mA, 0.5–4.5 V, 1–5 V, etc.
- Electrical connections: cable, M12, or Hirschmann plug
- Process connections: G1/4", G1/2", M20x1.5, NPT1/4
- Optional LED or LCD indicators (non-Ex)
- Multiple wetted materials available: SS316L, Tantalum, Hastelloy C
Do you need this sensor for your next project?
Request a no-obligation quote or send us your contact details for a free, no-obligation consultation. Our sales engineers will then contact you within a maximum of 1 to 2 working days.
Product downloads
Talk to our experts
Not exactly what you are looking for? We offer standard sensors, but can also help you with sensors adapted for you or a fully customised measurement solution. Contact us for advice or pricing.
Talk to an expertTechnical Specifications
Specification | Value |
---|---|
Accuracy | ≤±0.5%FS |
Application temperature | -30℃ ~80℃ ; -10℃ ~60℃ (Exia); -20℃ ~60℃ (Exd); -10℃ ~70℃ (Cable) |
Compensation temperature | 0℃ ~50℃ |
Electrical connection | DIN43650 plug or cable(1.5m) |
Housing protection | IP65 |
Load | ≤(U-11)/0.02Ω(2-wire); ≥10k(3-wire); ≥10k(3-wire) |
Long term stability | : ≤ ±0.3%FS/year |
Output signal | 4mA~20mA DC(2-wire); • 0/1V~5/10V DC(3-wire); • 0.5V~2.5/4.5V DC(3-wire |
Overpressure | ≤1.5 times FS or 1100bar (min. value is valid) |
Power supply | 11V~28VDC; 11V~28VDC; 3.3/5V DC |
Pressure type | gauge/ absolute / sealed gauge |
Process connection | M20×1.5 male waterline seal (or on your demand) |
Span thermal drift | ≤±0.05%FS/℃ (≤1bar); ≤±0.03%FS/℃ (>1bar) |
Storage temperature | -40℃ ~120℃ ; -20℃ ~85℃(Cable) |
Zero thermal drift | ≤±0.05%FS/℃ (≤1bar); ≤±0.03%FS/℃ (>1bar) |
