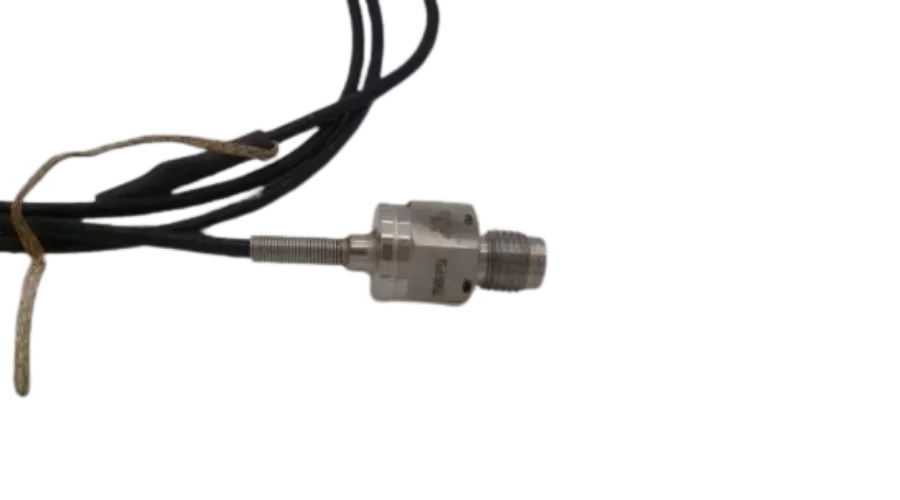

PM10 Miniature pressure sensor
Compact M10 pressure sensor for static and dynamic pressure measurements in industrial environments. Designed with a fully welded stainless steel body, flush membrane and multiple output options for reliable OEM and test system integration.
Key features
- M10x1.0 mechanical connection
- Stainless steel welded design
- Static and dynamic pressure measurement
- Pressure ranges up to 350 bar / 5000 psi
- mV, 5 V or 4–20 mA output
- Optional IP67 protection
Performance highlights PM10 Miniature pressure sensor
The PM10 miniature pressure sensor is designed for accurate static and dynamic pressure measurements in industrial environments. Its fully welded stainless steel body and flush membrane make it suitable for many corrosive and conductive fluids. The sensor is available with low-level mV output, amplified 5 V output or 2-wire 4–20 mA current loop, making it flexible for test benches, OEM systems and industrial measurement setups.
Usage conditions
The PM10 is available for absolute, relative and sealed pressure measurement. It offers pressure ranges from 1 bar up to 350 bar, with operating temperatures up to 120 °C depending on output version. Standard protection is IP50, with IP67 available as an option for demanding industrial use.
Possible applications
- Industrial pressure measurement
- Hydraulic and pneumatic test benches
- Dynamic pressure monitoring
- Pressure measurement in corrosive fluids
- OEM integration in compact systems
- R&D and production test setups
Advantages of choosing this product
The PM10 combines a compact M10 process connection with robust stainless steel construction and multiple signal output options. This gives engineers a reliable pressure sensor for installations where space, media compatibility and signal integration are important.
Other important features
- Overpressure: 2 x rated pressure
- Burst pressure: 5 x rated pressure
- 3 x rated pressure for 350 bar range
- Combined non-linearity and hysteresis: ±0.50% FS max.
- Repeatability: ±0.2% FS
- 3 kHz bandwidth
- Cable or COMTRONIC connector output
- Optional compensated temperature ranges
Do you need this sensor for your next project?
Request a no-obligation quote or send us your contact details for a free, no-obligation consultation. Our sales engineers will then contact you within a maximum of 1 to 2 working days.
Talk to our experts
Not exactly what you are looking for? We offer standard sensors, but can also help you with sensors adapted for you or a fully customised measurement solution. Contact us for advice or pricing.
Talk to an expertTechnical Specifications
| Specification | Value |
|---|---|
| Pressure range | 1, 2, 5, 10, 20, 35, 50, 100, 200, 350 bar |
| Pressure range psi | 15, 30, 75, 150, 300, 500, 750, 1500, 3000, 5000 psi |
| Pressure type | Absolute, relative or sealed |
| Over pressure | 2 times rated pressure |
| Burst pressure | 5 times rated pressure, 3 times rated pressure for 350 bar range |
| Pressure media | Any liquid or gas compatible with 15-5 PH or stainless steel |
| Electrical input | 500–1500 Ω / <30 mA / <30 mA |
| Supply voltage | 10 VDC regulated / 13–32 VDC / 10–26 VDC |
| Output versions | Low-level mV, 5 V amplified, 4–20 mA current loop |
| Sensibility / full scale output | 10 mV/V, 5 mV/V for 1 bar range / 5 V ±150 mV / 20 mA ±0.4 mA |
| Output impedance | 500–800 Ω / 1 kΩ / 1 kΩ |
| Zero offset at 20 °C | ±1 mV/V / 0 to 100 mV / 4 mA ±0.4 mA |
| Bandwidth -3 dB | 3 kHz |
| Combined non-linearity and hysteresis | ±0.50% FS max. |
| Repeatability | ±0.2% FS |
| Insulation | >100 MΩ @ 50 VDC |
| Operating temperature | -40 °C to 120 °C / -40 °C to 120 °C / -20 °C to 80 °C |
| Compensated temperature | 0 °C to 60 °C standard |
| Thermal zero shift | < ±3% FS / 50 °C |
| Thermal sensitivity shift | < ±2% FS / 50 °C |
| Resonant frequency | 30, 30, 35, 50, 69, 79, 109, 154, 218, 288 kHz |
| Electrical connection | 4 x 30 AWG shielded cable, 2 m standard |
| Connector option | Integrated COMTRONICS CMR-02-E-04-P connector |
| Mechanical connection | M10x1.0 |
| Material | Z8CND17.04, RM > 90 HBAR |
| Index of protection | IP50 standard, IP67 optional |
| Pressure sensing principle | 1 and 2 bar: full Wheatstone bridge dielectrically isolated silicon on silicon; other ranges: half Wheatstone bridge dielectrically isolated silicon on silicon |
| Sealing | BS ring Ø15.88 mm x 2 mm, -40 °C to 135 °C |
| Mounting torque | 10 Nm max. |
| Cable length options | 2 m standard, custom length in meters or feet |
| Compensated temperature options | C1: -40 °C to +120 °C, C2: -40 °C to +200 °C |
