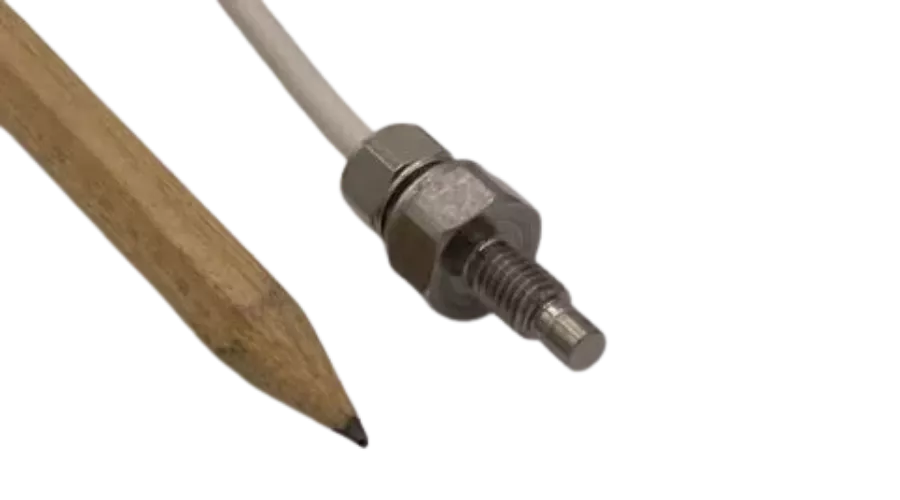

PM5 series Miniature pressure sensor
Compact M5 pressure sensor for static and dynamic measurements in corrosive or conductive media. Designed with a titanium body, flush membrane and optional amplified 4 V output for easy integration in demanding test setups.
Key features
- Miniature M5x0.8 mechanical connection
- Titanium body for corrosive media
- Static and dynamic pressure measurement
- Pressure ranges up to 350 bar / 5000 psi
- Low level mV or amplified 4 V output
- Optional IP65 or IP67 protection
Performance highlights PM5 series miniature pressure sensor
The PM5 miniature pressure sensor is designed for accurate static and dynamic pressure measurements in compact installations. Its flush membrane design and titanium body make it suitable for corrosive or conductive fluids, while the available low level mV and amplified 4 V versions give engineers flexibility during system integration.
Usage conditions
The sensor is available for absolute, relative and sealed pressure measurement. It operates from -40 °C to 120 °C and can be supplied with different compensated temperature ranges. Standard protection is IP50, with IP65 and IP67 available as options for harsher environments.
Possible applications
- Pressure testing in compact mechanical assemblies
- Hydraulic and pneumatic test benches
- Corrosive fluid pressure monitoring
- Dynamic pressure measurement
- Laboratory and R&D test setups
- OEM integration in space-limited systems
Advantages of choosing this product
The PM5 combines a small M5 process connection with robust titanium construction and a flush membrane design. This makes it a strong choice for engineers who need reliable pressure data in limited installation space, especially where media compatibility and fast sensor response are important.
Other important features
- Overpressure: 2 x rated pressure
- Burst pressure: 5 x rated pressure
- Linearity: ±0.25% FS
- Repeatability: ±0.2% FS
- 4 x 28AWG shielded cable, 2 m standard
- Cable or connector output options
Do you need this sensor for your next project?
Request a no-obligation quote or send us your contact details for a free, no-obligation consultation. Our sales engineers will then contact you within a maximum of 1 to 2 working days.
Talk to our experts
Not exactly what you are looking for? We offer standard sensors, but can also help you with sensors adapted for you or a fully customised measurement solution. Contact us for advice or pricing.
Talk to an expertTechnical Specifications
| Specification | Value |
|---|---|
| Pressure range | 0–2, 0–5, 0–10, 0–20, 0–35, 0–50, 0–100, 0–200, 0–350 bar |
| Pressure range psi | 0–30, 0–75, 0–150, 0–300, 0–500, 0–750, 0–1500, 0–3000, 0–5000 psi |
| Pressure type | Absolute, relative, sealed |
| Over pressure | 2 x rated pressure |
| Burst pressure | 5 x rated pressure |
| Electrical input / consumption | 1500 Ω nominal / < 30 mA |
| Supply voltage | 10 VDC regulated / 10–32 VDC |
| Full scale output | 30 mV for 2 bar / 100 mV above 2 bar / 4 V ± 200 mV |
| Output impedance | 500 to 800 Ω / 1000 Ω |
| Zero offset at 20 °C | ±10 mV / 0.5 V ± 200 mV |
| Linearity | ±0.25% FS / ±0.5% FS for 2 bar model |
| Hysteresis | ±0.25% FS / ±0.5% FS for 2 bar model |
| Repeatability | ±0.2% FS |
| Insulation | >100 MΩ @ 50 VDC |
| Operating temperature | -40 °C to 120 °C |
| Compensated temperature | 0 °C to 60 °C standard |
| Thermal zero shift | < ±2.5% FS / 60 °C, < ±5% for 2 bar model |
| Thermal sensitivity shift | < ±2.5% FS / 60 °C, < ±5% for 2 bar model |
| Resonance frequency | 100–800 kHz depending on range |
| Bandwidth -3 dB | 3 kHz for amplified version |
| Electrical connection | 4 x 28AWG shielded cable, 2 m long |
| Connector output | COMTRONIC CMR-O2-E-04P for P-M5M only |
| Mechanical connection | M5x0.8 |
| Index of protection | IP50 standard, IP65 or IP67 optional |
| Sealing | BS ring, OD 10 mm, thickness 1 mm |
| Material | Body: titanium; connector output option: brass |
| Mounting torque | 5 Nm nominal, 10 Nm max. |
| Cable length options | 2 m standard, custom length in meters or feet |
| Compensated temperature options | C1: -40 °C to +60 °C, C2: -40 °C to +120 °C |
