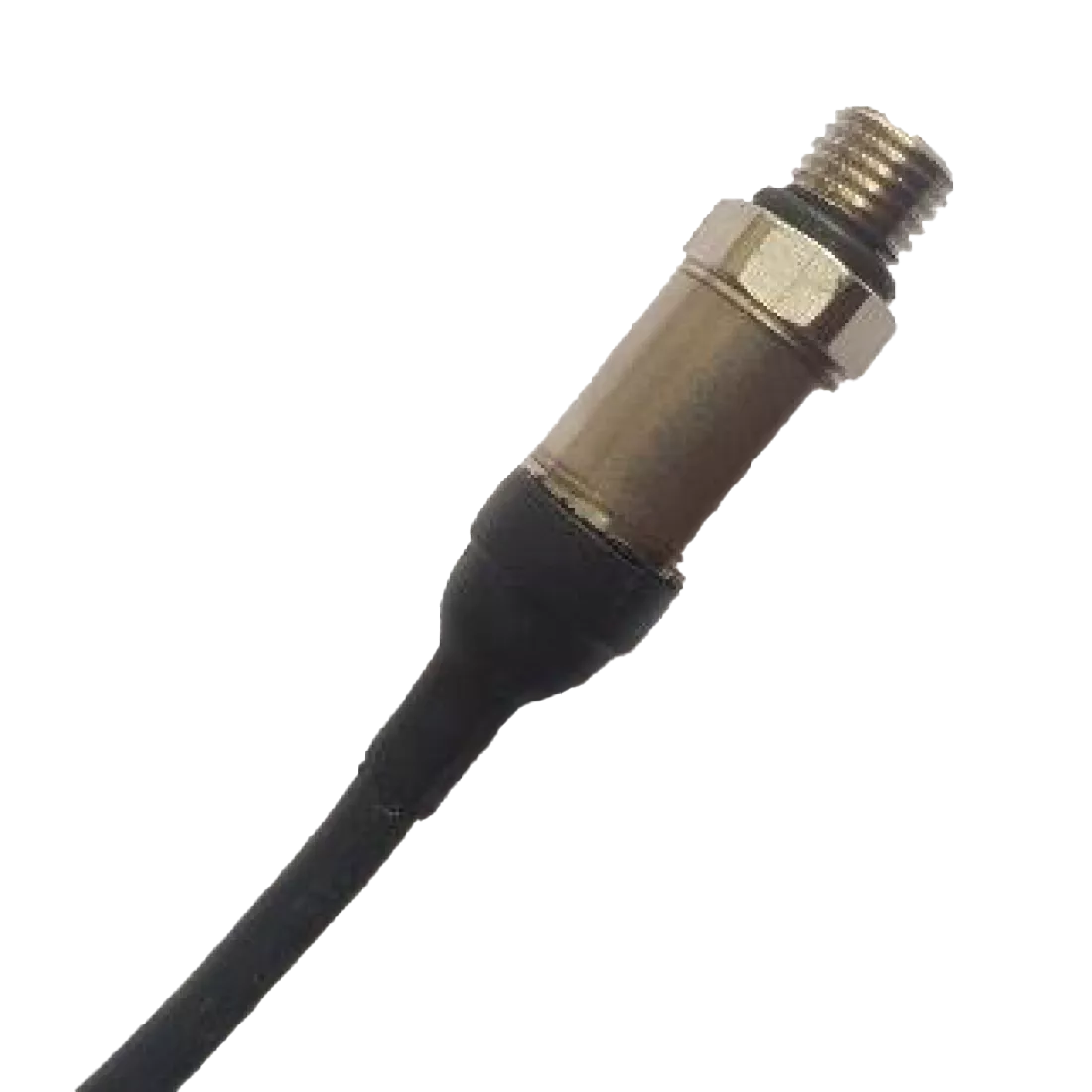

PM8X1 Series miniature pressure transmitter
Miniature pressure transmitter with M8 x 1 pressure port for static and dynamic pressure measurements. Designed for corrosive or conducting fluids, with low level output and optional amplified output.
Key features
- Measuring range from 0 to 1 bar g
- Static and dynamic pressure measurement
- M8 x 1 male pressure port
- Stainless steel 316L wetted parts
- IP67 ingress protection
- Optional amplified output
Performance highlights
The PM8X1 Series miniature pressure transmitter is designed for static and dynamic pressure measurements in corrosive environments. The internal sensor cell is compatible with many corrosive or conducting fluids. The standard version is specified for 0 to 1 bar g. Higher ranges above 100 bar may be possible depending on the application.
Usage conditions
The transmitter has stainless steel 316L wetted materials and a Viton O-ring seal. It uses an M8 x 1 male pressure port and a shielded 1 m cable. The compensated temperature range is 0°C to 60°C. The operating temperature range is 0°C to 100°C.
Possible applications
- Compact pressure monitoring
- Static pressure measurement
- Dynamic pressure measurement
- Corrosive fluid measurement
- Conductive fluid measurement
- OEM pressure transmitter integration
Advantages of choosing this product
The PM8X1 Series miniature pressure transmitter combines a compact M8 x 1 process connection with IP67 protection. It is suitable for applications where limited space, fluid compatibility and stable analogue output matter. The optional integrated electronics allow an amplified voltage signal.
Other important features
- Accuracy of ± 0.2% FS
- Full scale output of 100 mV typical
- Natural frequency of 35 kHz
- Long term stability of 0.2% FS per year
- Dielectric strength above 100 MΩ
- Cable wiring with red, black, white and blue wires
Do you need this sensor for your next project?
Request a no-obligation quote or send us your contact details for a free, no-obligation consultation. Our sales engineers will then contact you within a maximum of 1 to 2 working days.
Talk to our experts
Not exactly what you are looking for? We offer standard sensors, but can also help you with sensors adapted for you or a fully customised measurement solution. Contact us for advice or pricing.
Talk to an expertTechnical Specifications
| Specification | Value |
|---|---|
| Pressure measuring range | 0 bar g to 1 bar g |
| Pressure overload, rated | 2x |
| Pressure overload, rated | 3x |
| Accuracy | -0.2% FS to 0.2% FS |
| Thermal shift, zero | -0.03% FS / °C to 0.03% FS / °C |
| Thermal shift, sensitivity | -0.02% / °C to 0.02% / °C |
| Long term stability | 0.2% FS / year |
| Output signal, zero | -5 mV to 5 mV |
| Output signal, full scale | 90 mV to 110 mV, 100 mV typical |
| Power supply UB | 10 VDC typical, 15 VDC max |
| Input impedance | 10 kΩ min. |
| Output impedance | 2.5 kΩ min., 3 kΩ typical, 4.5 kΩ max. |
| Natural frequency | 35 kHz typical |
| Dielectric strength | 100 MΩ min. |
| Pressure port | M8 x 1 male |
| Temperature, compensated | 0°C to 60°C |
| Temperature, operating | 0°C to 100°C |
| Temperature, storage | -40°C to 150°C |
| Ingress protection rating | IP67 |
