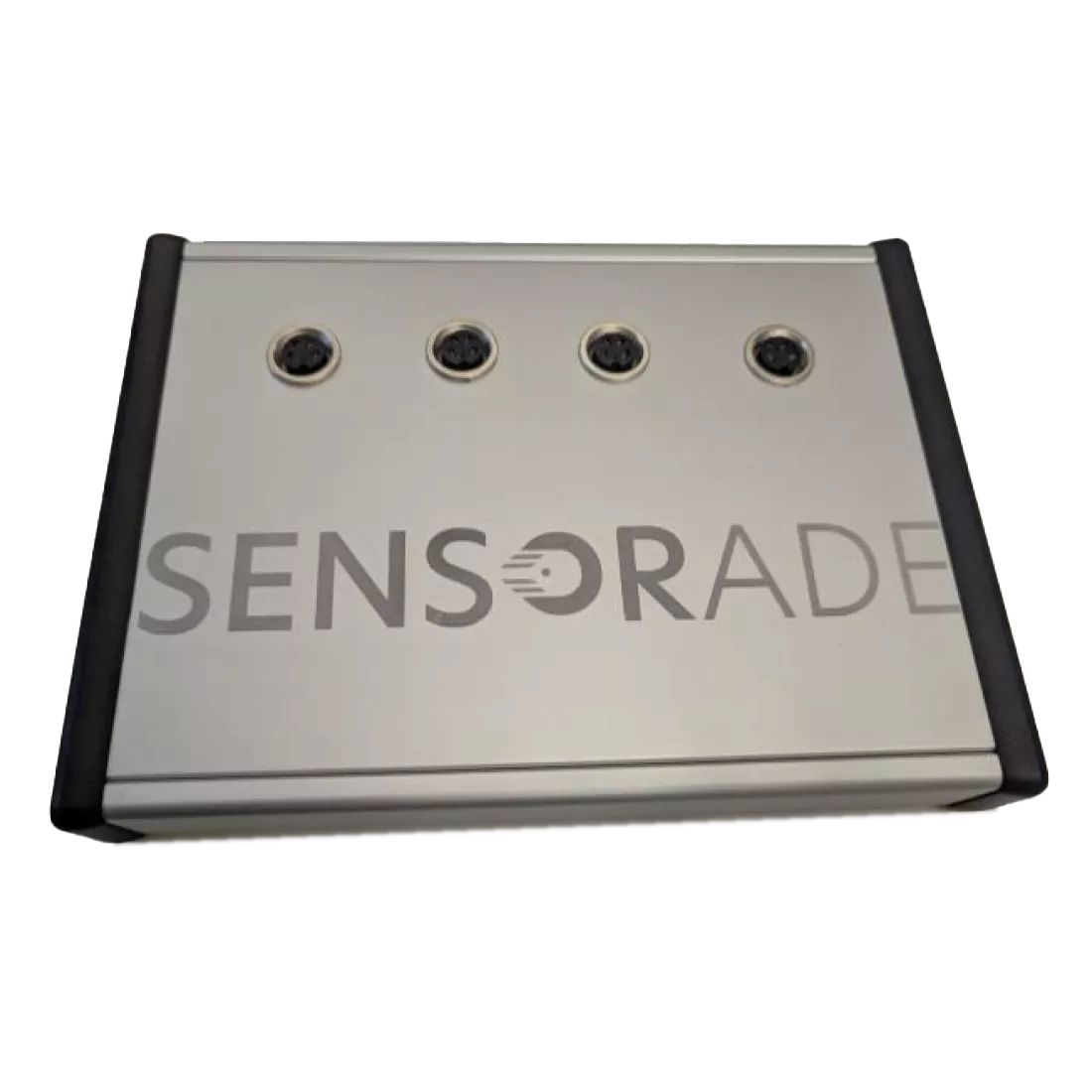

USB-SC-250-C-0X Signal Conditioning Board
Very high frequency sensor conditioning board
Key features
- Dimensions : 220x165x30mm
- Power supply and data : USB Type-C (3.0)
- Sensor output range : -200 to 200 mV
About the USB-SC-250-C-0X
Very high frequency acquisition and compensation board for pressure sensors. It enables precise power supply, temperature compensation, and signal amplification of 2 to 4 sensors. This product is optimized for high frequency acquisition (250 kHz per channel) and can provide data either through USB via the provided software.
Key features
- Dimensions : 220x165x30mm
- Power supply and data : USB Type-C (3.0)
- Sensor output range : -200 to 200 mV
- Number oSensorf channels : 2-4
- Acquisition frequency : 250kHz/channel
- Only compatible with “C”-rated* Sensors
Applications
- Instrumentation (ie: Automotive, …)
- Aerodynamic testing (ie: wind tunnel)
- Industrial process monitoring
- Pumps and compressors
- Oil and gas
- ...
Do you need this sensor for your next project?
Request a no-obligation quote or send us your contact details for a free, no-obligation consultation. Our sales engineers will then contact you within a maximum of 1 to 2 working days.
Product downloads
Talk to our experts
Not exactly what you are looking for? We offer standard sensors, but can also help you with sensors adapted for you or a fully customised measurement solution. Contact us for advice or pricing.
Talk to an expertTechnical Specifications
| Specification | Value |
|---|---|
| Acquisition frequency | 1Hz to 250 kHz per channel |
| Differential input voltage | -200 to 200 mV |
| Input Impedance | >10 GΩ in parallel with 35 pF |
| Sensor Bridge Resistance (Rwb) | 1 to 10 kΩ |
| Sensor power supply | 5V |
| Dimensions (L x W x H) | 220x165x30mm |
| Sensor Compensation Temperature* | 20° to 185 °C |
| Power consumption | 4.7 W max |
| Number of channels | 2-4 |
| Accuracy [2σ] | 1% FS |
