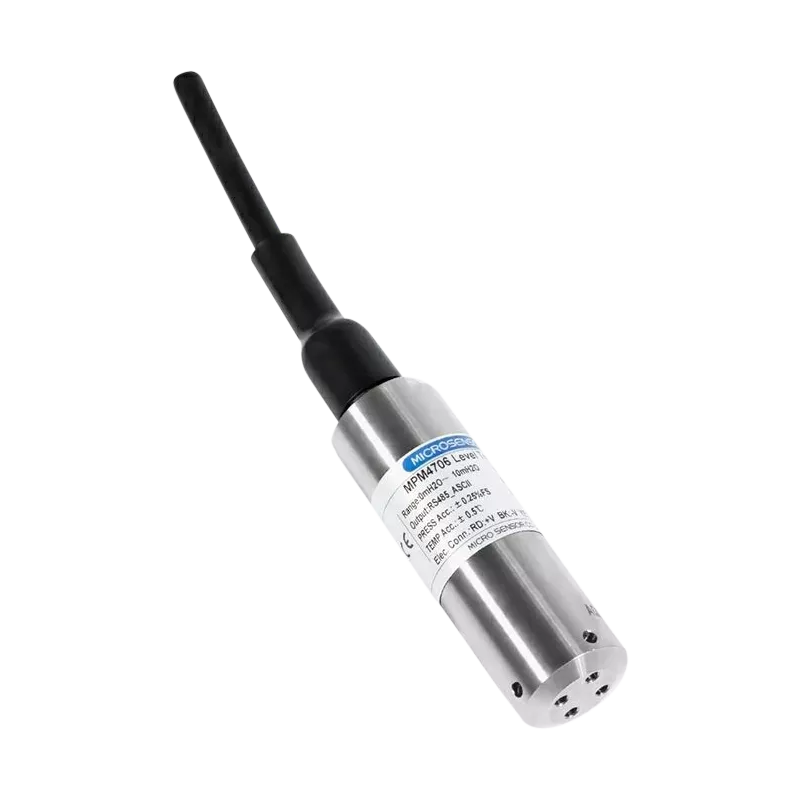

MPM4706 Digital Level Transmitter
Digital level transmitter designed for accurate liquid level and temperature monitoring
Key features
- Extremely low power consumption and auto sleep
- Level and temperature measurement combination
- Digital temperature compensation and non-linearity modulation
About the MPM4706 Digital Level Transmitter
The MPM4706 is a digital level transmitter designed for accurate liquid level and temperature monitoring via an RS485 communication interface. This sensor combines high measurement precision with an ultra-low power standby mode, consuming as little as 10 µA. Suitable for a wide range of digital applications, it supports cost-effective and energy-efficient system performance without compromising on accuracy. Typical areas of use include groundwater monitoring, hydrological studies, water management, the petroleum and petrochemical industries, as well as coal sector operations.
Features
• Level & Temperature Measurement
• Suitable for various digital application sites
• Average working current≤3mA, standby power consumption≤10uA
• Liquid level accuracy: ±0.25%
• Temperature accuracy: ±0.5°C
Do you need this sensor for your next project?
Request a no-obligation quote or send us your contact details for a free, no-obligation consultation. Our sales engineers will then contact you within a maximum of 1 to 2 working days.
Product downloads
Talk to our experts
Not exactly what you are looking for? We offer standard sensors, but can also help you with sensors adapted for you or a fully customised measurement solution. Contact us for advice or pricing.
Talk to an expertTechnical Specifications
| Specification | Value |
|---|---|
| Measured range: | 0~3.5...200 mH2O |
| Over pressure | 1.5 × FS |
| Total accuracy | ±0.25%FS（-10℃～70℃） |
| Temperature accuracy | ±0.5℃(20℃～80℃), ±0.75℃(-30℃～-20℃) |
| Output | RS485 |
| Compensation temperature | -10℃～ 70℃ |
| Operation temperature | -10℃～ 70℃ |
| Long-term stability | ±0.25%FS/year |
| Load | RS485 terminal can cascade up to 99 transmitters |
