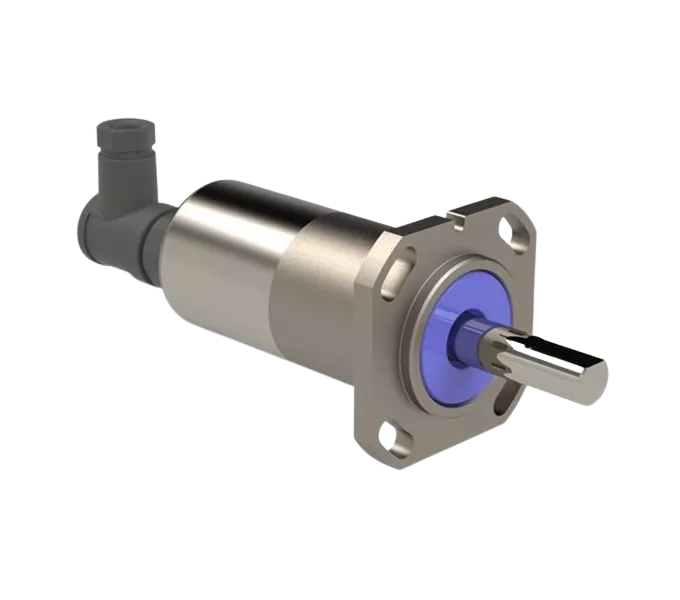

P510 Rotary position sensor – High shaft loading

---

Key features

• Withstands up to 350N radial and 250N axial shaft loading
• Non-contact inductive technology—zero mechanical wear
• Custom-calibrated angular range from 11° to 160°
• Stainless steel body and shaft, IP67 sealed
• Infinite resolution with high-frequency response
• Multiple analog outputs: voltage or 4–20mA current loop

---

About the P510 Rotary position sensor (High shaft loading)

Built for high mechanical stress. The P510 rotary position sensor from Althen is designed for environments where both axial and radial shaft loads are a reality. With support for up to 350N radial and 250N axial loads, this sensor is ideal for tough mechanical applications and industrial automation systems.

Precise angle feedback, long service life

With inductive, non-contact technology, the P510 offers wear-free operation and excellent long-term stability. It provides an analog signal proportional to angular position, with full 360° freedom of rotation and a factory-calibrated working angle between 11° and 160°. A reference notch ensures precise installation and alignment.

Customizable & robust construction

Constructed from stainless steel with an IP67 sealing, the P510 ensures reliable performance under vibration (10g), shock (40g), and extreme temperatures (-40°C to +125°C). Output options include 0.5–4.5V, ±5V, ±10V, 0.5–9.5V, or 4–20mA (2- or 3-wire), with signal integrity protected by EMC compliance and wiring protection tiers (see page 4).

Mounting and connectivity flexibility

Choose between flat or keyed shaft, and axial or radial connectors (M12, cable gland, short cable). Each unit is factory calibrated and offers plug-and-play installation via standard flange and electrical pinout options, as shown on page 5.

Typical applications

• Angle sensing in robotic arms and automation
• Rotary feedback in heavy-duty machinery
• OEM embedded systems needing long-life sensors
• Servo or steering angle feedback in rugged conditions

---
