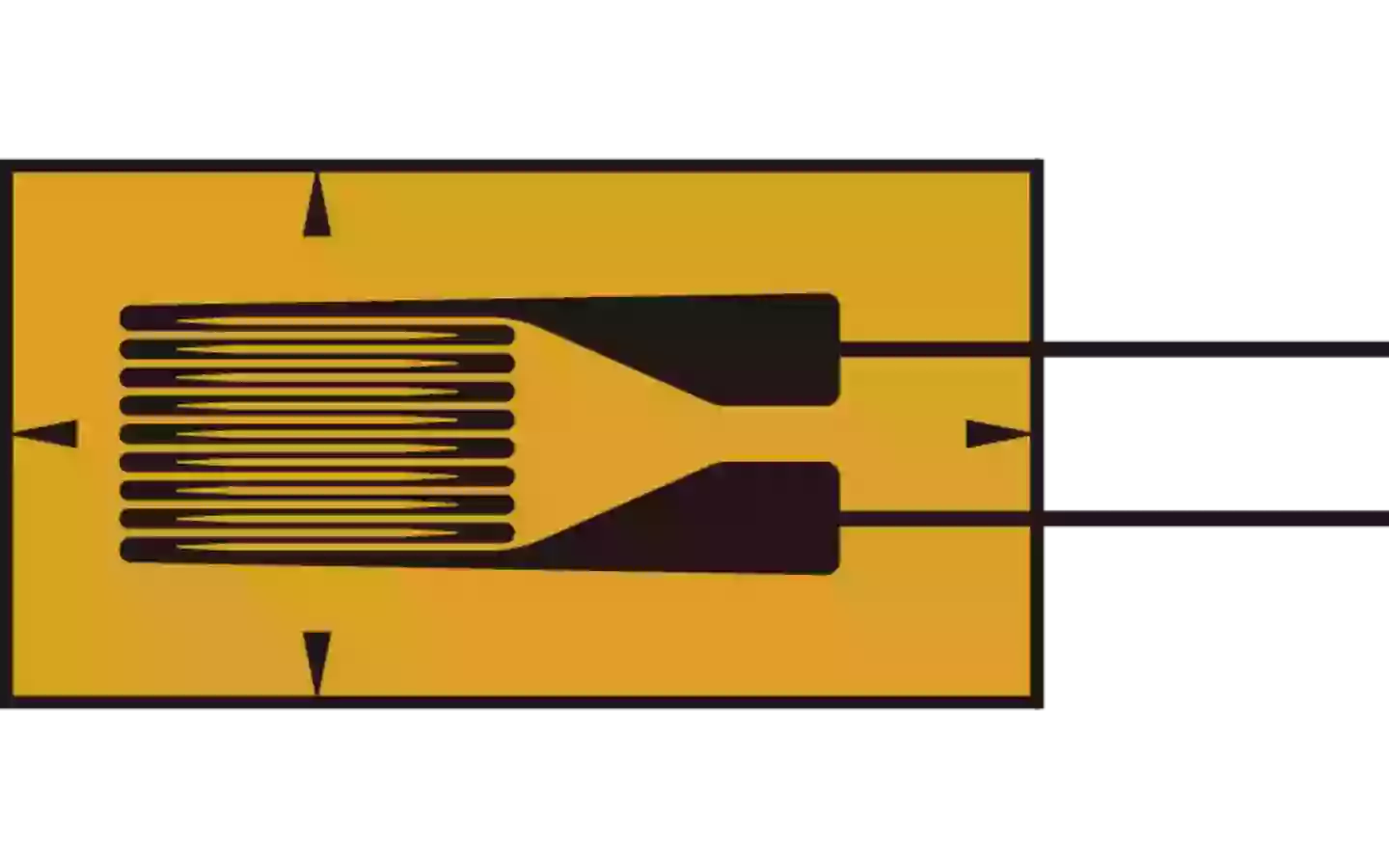

YFLA Series Strain Gauges for Very High Strain
Single element strain gauge for large strain measurement up to 15~20%
Key features
- 15~20% (150000~200000×10⁻⁶ strain) Strain limit
- Operational temperature: -30~+80°C
- Special plastics backing, Cu-Ni element
- Type: Single element, for large strain measurement
- Gauge resistance: 120Ω
- Gauge length: 2, 5, 10, 20mm
About the YFLA Series for Very High Strain Straingauges
YF series for high strain
These gauges are applicable to the measurement of large strain up to 15 to 20%. These are not applicable to the measurement of repeated strain in elastic range as well as in large range.
Do you need this sensor for your next project?
Request a no-obligation quote or send us your contact details for a free, no-obligation consultation. Our sales engineers will then contact you within a maximum of 1 to 2 working days.
Product downloads
Talk to our experts
Not exactly what you are looking for? We offer standard sensors, but can also help you with sensors adapted for you or a fully customised measurement solution. Contact us for advice or pricing.
Talk to an expertTechnical Specifications
| Specification | Value |
|---|---|
| Applicable specimen | Metal |
| Backing | Special plastics |
| Bonding adhesive | CN, CN-Y |
| Element | Cu-Ni |
| Fatigue life at room temperature | - |
| Operational temperature(°c) | -20~+80°C |
| Strain limit | 15~20% (150000~200000×10⁻⁶ strain) |
| Temperature compensation range(°c) | - |
