QFXV Series High Temperature Use Strain Gauges

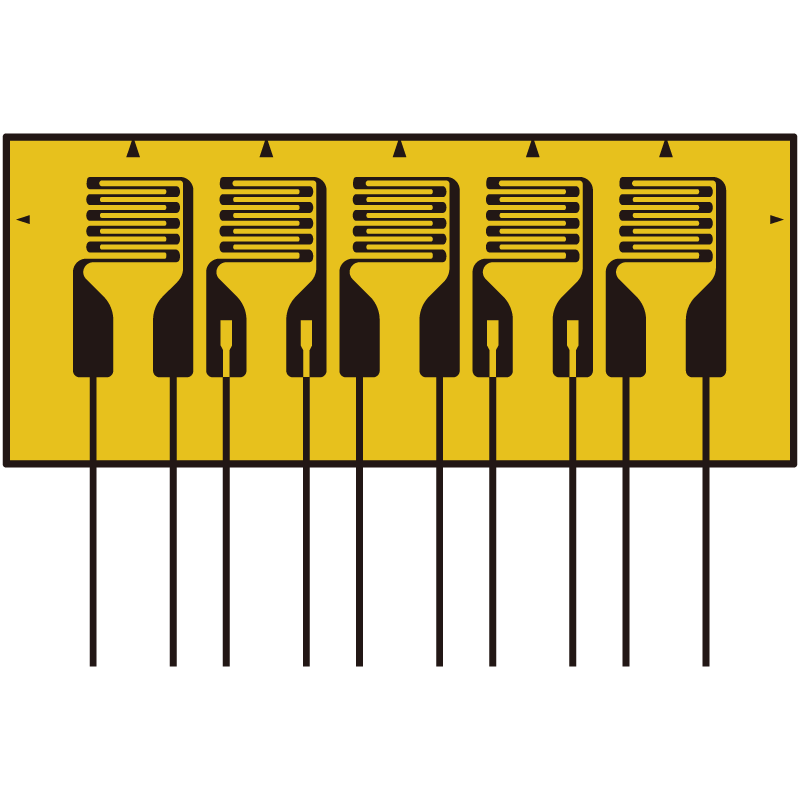

5-element High temperature strain gage for stress concentration measurement
About the QFXV Series High Temperature Use Straingauges
QF series High temperature use strain gauge
This gauge utilizes polyimide resin as a backing. Strain measurement in high temperature up to 200°C is easily realized by bonding the gauge with room temperature curing adhesive NP-50B.
Features QFXV
- Type: High temperature 5-element, stress concentration measurement
- Gauge resistance: 120Ω
- Gauge length: 1mm
Temperature compensation materials
- 11: Mild steel
- 17: Stainless steel
- 23: Aluminium
Do you need this sensor for your next project?
Request a no-obligation quote or send us your contact details for a free, no-obligation consultation. Our sales engineers will then contact you within a maximum of 1 to 2 working days.
Product downloads
Talk to our experts
Not exactly what you are looking for? We offer standard sensors, but can also help you with sensors adapted for you or a fully customised measurement solution. Contact us for advice or pricing.
Talk to an expertTechnical Specifications
| Specification | Value |
|---|---|
| Applicable specimen | Metal, Ceramics |
| Backing | Polyimide |
| Bonding adhesive | NP-50B, CN, C-1 |
| Element | Cu-Ni alloy foil |
| Fatigue life at room temperature | 1×10⁻⁶ (±1500×10⁻⁶ strain) |
| Operational temperature(°c) | -20~+200°C |
| Strain limit | 3% (30000×10⁻⁶ strain) |
| Temperature compensation range(°c) | +10~+100°C |
