BTM Series Strain Gauges for Strain in Bolt Measurement
Used for measurement of tensile strain of bolt, heat curing A-2 adhesive for long-term stability
Key features
- 0.5% (5000×10⁻⁶ strain) Strain limit
- Operational temperature: -10~+80°C
- Special plastics backing, Cu-Ni element
- Gauge resistance: 120Ω
- Gauge length: 1, 6mm
- Hole drilled: 1.6 / 2mm
- Applicable on: Bolt M10 or larger
About the BTM Series for Strain in Bolt Measurement
BTM/BTMC series bolt strain gauge

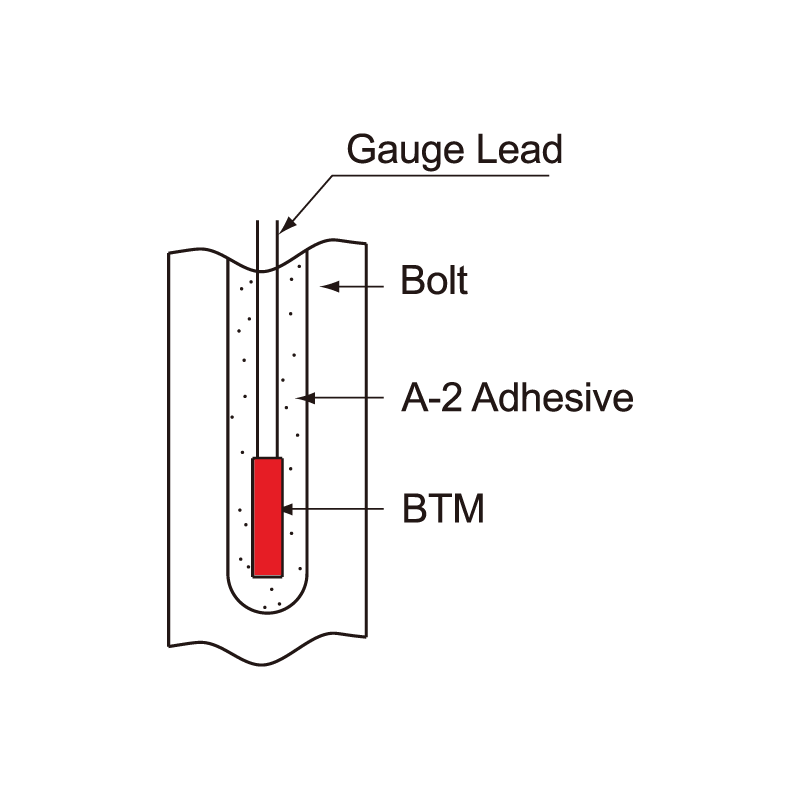

These gauges are used for measurement of tensile strain of bolt. They are simply inserted into pre-drilled hole in the bolt with exclusive adhesives. This method is recommendable when an ordinary strain gauges can not be mounted on the bolt surface. Accurate tensile force measurement is possible by calibrating the bolt after installing the bolt gauges.
The BTM bolt gauges use heat-curing A-2 adhesive for installation, which provides better long-term stability
Do you need this sensor for your next project?
Request a no-obligation quote or send us your contact details for a free, no-obligation consultation. Our sales engineers will then contact you within a maximum of 1 to 2 working days.
Product downloads
Talk to our experts
Not exactly what you are looking for? We offer standard sensors, but can also help you with sensors adapted for you or a fully customised measurement solution. Contact us for advice or pricing.
Talk to an expertTechnical Specifications
| Specification | Value |
|---|---|
| Applicable specimen | Bolt M10 or larger |
| Backing | Special plastics |
| Bonding adhesive | A-2 (BTM), CN(BTMC) |
| Element | Cu-Ni |
| Fatigue life at room temperature | - |
| Operational temperature(°c) | -10~+80°C |
| Strain limit | 0.5% (5000×10⁻⁶ strain) |
| Temperature compensation range(°c) | - |
