C820 Shallow Water Submersible Tiltmeter with 4-20mA output
Electrolytic tiltmeter line for geophysical and geotechnical applications
Key features
- For use in fresh and salt water applications
- 4-20mA output
- Absolute gravity referenced electrolytic sensor
- Virtually nolong-term drift
- Sensitivity to <0.0017mm/m

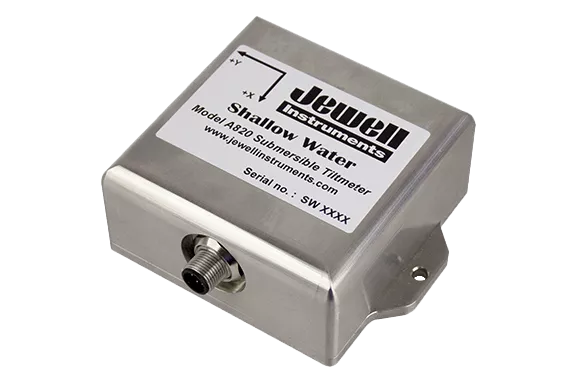

About the C820 Shallow Water Submersible Tiltmeter
The C820 Shallow Water Tiltmeter is a high-precision submersible tiltmeter for use in fresh and salt water applications with 4-20mA output. Using an absolute gravity referenced electrolytic sensor, the C820 delivers superior measurement accuracywith virtually nolong-term drift.
High-gain units are sensitive to <0.0017mm/m or better. All units are rated to 200 meters (656.2 ft) waterproof for advanced protection from the elements. Use the C820“Shallow Water” for structural monitoring, angle measurement and control, platform leveling, and more
Configurations
Output options can be analog (±5 VDC, ±10 VDC), current (4-20mA) and digital (RS232 and RS422).
A820 Tiltmeter: ±5V Output
C820 Tiltmeter: 4-20mA Output
D820 Tiltmeter: Digital Output
Digital, analog, RS-232, RS-422, shallow water, submersible, high precision, voltage, current, 4-20 mA
Do you need this sensor for your next project?
Request a quotation today or leave your details to recieve more information from one of our experts.
Product downloads
Have it your way
Not exactly what you’re looking for? We offer standard sensors but can also help you with a tailor-made sensor or a complete measuring solution. Please contact us for advice or budgetary pricing.
Talk to an expertTechnical Specifications
Specification | Value |
---|---|
Dimensions | 92.1 x 112.4 x 61 mm |
Housing | 316 SS |
Output | ±5 VDC, ±10 VDC, 4-20mA, RS232 or RS422 |
Range | ±0.5°, ±3°, ±50° uniaxial or biaxial |
Resolution | 0.0001°, 0.0006°, 0.01° |
Temperature range | -4 to +60° C |
