D802 Deep Water Submersible Tiltmeter with Digital Output
High-precision submersible tiltmeter for use in marine, offshore, and deep ocean applications
About the D802 DeepWater Digital Submersible Tiltmeter

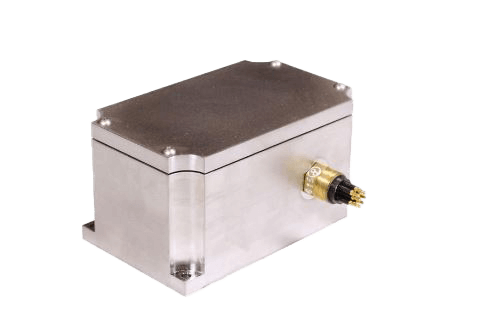

The D802 Deep Water Digital Tiltmeter is the fully submersible version of the D801 Tuff Tilt Tiltmeter. Performance features are the same, but the DeepWater housing is machined from a solid piece of 316 stainless steel and incorporates a high-pressure neoprene connector. The pressure rating is 250 bars (2500 meters depth). Higher-pressure versions may be special ordered.
Temperature rating is governed by the neoprene connector. Wider temperature range is available with other connector types. Units are available in a variety of configurations including single axis (uniaxial), or dual-axis (biaxial), analog, digital, or 4-20mA outputs.
DeepWater tiltmeters are excellent choices for offshore work and other underwater applications.
Other Configurations (output)
A802 Deep Water Submersible Tiltmeter with ±5V Output
C802 DeepWater Submersible Tiltmeter with 4-20mA Output
Single-axis, dual-axis, digital, analog, waterproof, RS-232, RS-422, RS-485, Tuff Tilt, submersible, high pressure, IP68, 316SS, deep water, 4-20ma
Do you need this sensor for your next project?
Request a no-obligation quote or send us your contact details for a free, no-obligation consultation. Our sales engineers will then contact you within a maximum of 1 to 2 working days.
Product downloads
Talk to our experts
Not exactly what you are looking for? We offer standard sensors, but can also help you with sensors adapted for you or a fully customised measurement solution. Contact us for advice or pricing.
Talk to an expertTechnical Specifications
| Specification | Value |
|---|---|
| Dimensions | 149 x 91 x 82 mm |
| Housing | 316 stainless steel |
| Output | RS232 or RS422, full duplex |
| Power requirement | +7 to +28 VDC @ 27mA |
| Range | ±5°/±60° uniaxial or biaxial |
| Resolution | 0.0001°/0.002° |
| Temperature range | -4 to +60°C |
