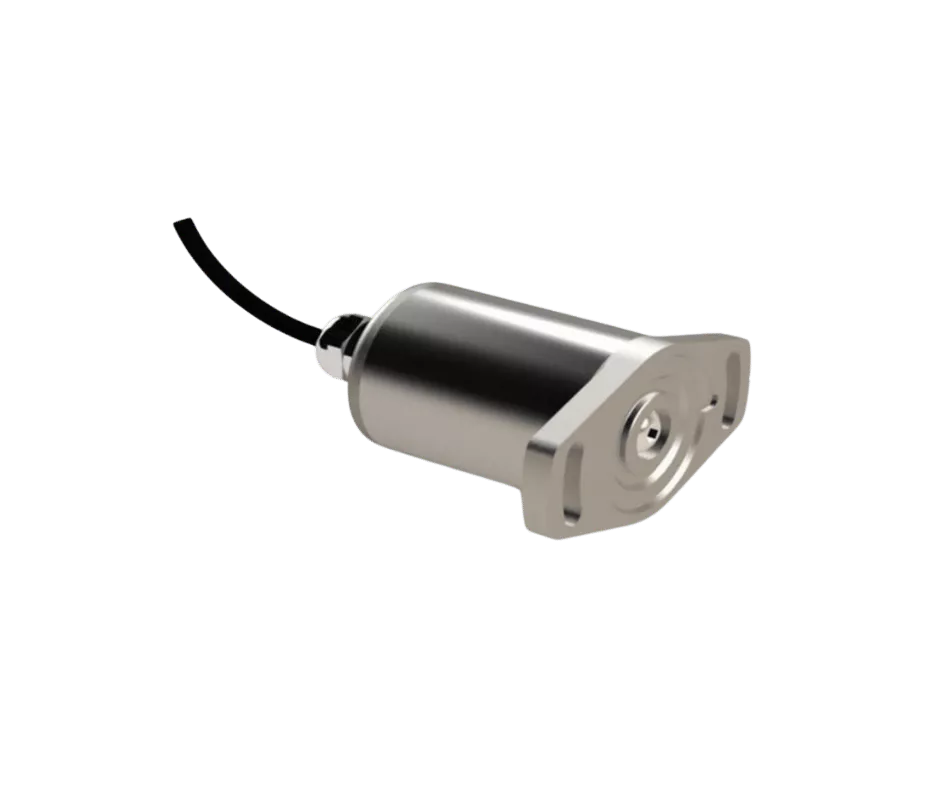

S613 Submersible large angle tilt sensor

---

Key features

• Durable inductive technology eliminates wear
• Calibrated to custom angle ranges (15° to 160°)
• IP68 10bar / IP69K environmental sealing
• Compact, flange-mounted stainless steel housing
• Multiple output options including 4–20 mA
• High temperature stability and EMC protection

---

Performance highlights S613 Submersible large angle tilt sensor

The S613 tilt sensor delivers precise angular position measurement using Althen’s advanced non-contacting inductive technology. With infinite resolution and <±0.25° linearity, it provides consistent and accurate feedback even under extreme environmental conditions.

Usage conditions

Thanks to its rugged stainless steel housing and IP68 10bar/IP69K sealing, the S613 is ideal for submerged and outdoor environments. It withstands vibrations up to 10 g and shocks up to 40 g, with a wide operating temperature range from -20°C to +85°C.

Possible applications

• Submerged machinery position tracking
• Offshore or marine tilt monitoring
• Tilt feedback in harsh industrial environments
• Agricultural or mobile machinery feedback systems
• OEM integration requiring long life and precision

Advantages of choosing this product

The S613 combines the robustness of industrial-grade design with the precision of high-resolution tilt sensing. Althen’s proprietary inductive design eliminates wear and the need for signal conditioning, reducing lifecycle cost. Full EMC compliance and a wide range of output options make it a versatile solution for integration.

Other important features

• Response time: 250 ms
• Output types: 0.5–4.5V, ±5V, ±10V, 0.5–9.5V, 4–20mA (2/3 wire)
• MTBF: 350,000 hrs at 40°C
• Cable gland or connector variants available
• Customizable angle and cable length

---
