High-resolution tilt feedback sensor with IP68 350 bar sealing, ideal for subsea and industrial tilt monitoring applications.
IP68 | 350bar - Suitable for continuous underwater use
Key features
- Large angle range from 15° to 160°
- Rugged stainless steel 316 housing
- IP68 rated up to 350 bar pressure
- Factory-calibrated output signal
- Non-contact inductive measurement principle
- EMC-compliant and shock/vibration-resistant

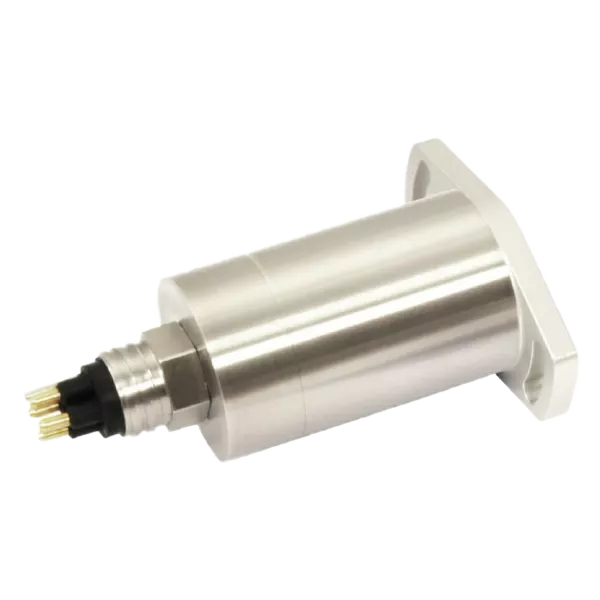

Performance highlights S623 Submersible Large Angle Tilt Sensor
The S623 is a high-accuracy tilt sensor designed for underwater and subsea applications. It provides linear output across a custom-calibrated angle range, typically between 15° and 160°. With non-contact inductive technology, it eliminates wear and ensures exceptional long-term reliability. The sensor is also vibration and shock resistant, suitable for dynamic and harsh conditions.
Usage conditions
Housed in corrosion-resistant stainless steel 316 and sealed to IP68 for up to 350 bar, the S623 withstands extreme underwater environments. It features wet mate connectors and is supplied with an over-moulded cable assembly. It supports multiple output configurations (voltage and current) and has a wide operating temperature range of -4°C to +50°C.
Possible applications:
- Subsea ROVs and AUVs
- Submersible tilt angle feedback
- Underwater positioning systems
- Marine construction equipment
- Tilt monitoring in high-pressure tanks
- Offshore wind turbine foundations
Advantages of choosing this sensor
The S623 stands out for its combination of large angular range, robustness, and precise linearity. It is fully customizable, with a wide range of electrical outputs, mounting options, and connector configurations. Delivered factory-calibrated and ready to integrate, it reduces engineering effort and ensures a reliable solution even in critical marine environments.
Other important features:
- MTBF of 350,000 hours @ 40°C
- Infinite resolution and 250 ms typical response time
- Optional Z-code for ±0.1% FSO linearity
- Meets EMC standards: EN 61000-6-2, EN 61000-6-3
- Directionally marked with registration mark on body
- Compatible with standard wet mate connector formats
Do you need this sensor for your next project?
Request a no-obligation quote or send us your contact details for a free, no-obligation consultation. Our sales engineers will then contact you within a maximum of 1 to 2 working days.
Product downloads
Talk to our experts
Not exactly what you are looking for? We offer standard sensors, but can also help you with sensors adapted for you or a fully customised measurement solution. Contact us for advice or pricing.
Talk to an expertTechnical Specifications
| Specification | Value |
|---|---|
| Body diameter | 40 mm, Flange 69mm |
| Body length (to mounting face) | 81 mm axial, 90 mm radial |
| Independent linearity/hysteresis | ≤ ±0.25% up to 100° |
| Pressure effect | Output change < 1° 0.2 : 1 (0.6 nom. @ 25°C) |
| Temperature coefficients | < ± 0.01%/°C Gain & | < ± 0.01%FS/°C Offset |
| Response time | 250 mS @ 20°C typ |
| Resolution | Infinite |
| Damping ratio | 0.2:1 (0.6 nom. @ 25°C) |
| Noise | < 0.02% FSO |
| Sealing | IP68 350 Bar |
| Vibration | IEC 68-2-6: 10 g |
| Shock | IEC 68-2-29: 40 g |
| Mtbf | 350,000 hrs 40°C Gf |
| Emc performance | EN 61000-6-2, EN 61000-6-3 |
