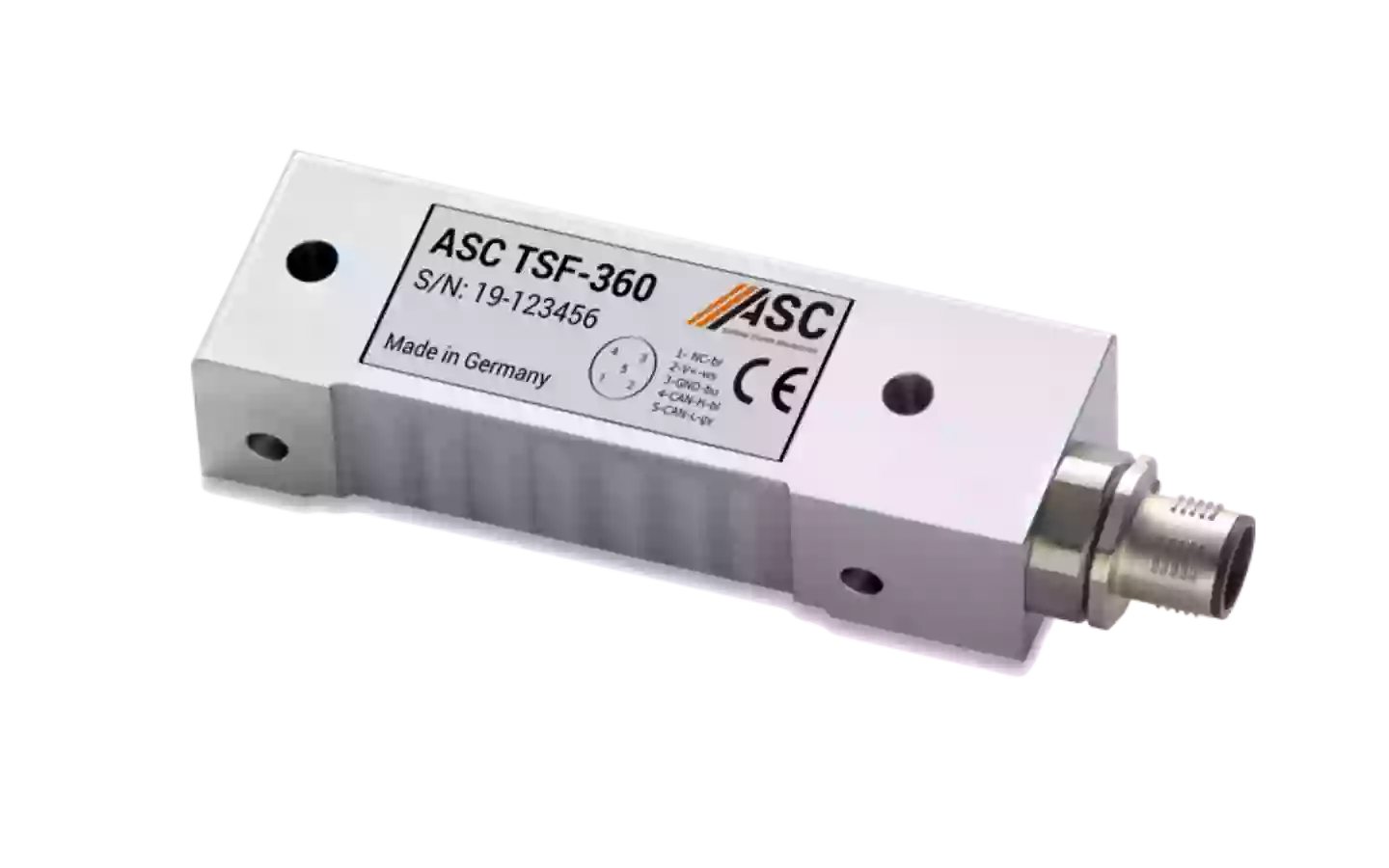

ASC TSF-360-CAN fluidic tilt sensor

Uniaxial 360° fluidic tilt sensor with digital CAN output, high resolution and robust aluminium housing for renewable energy, construction and agricultural applications

Key features

Fluidic capacitive tilt sensor, uniaxial
Measurement range: 360°
CAN/CANopen digital interface
Accuracy: <0.15° (typical <0.10°)
Resolution: <0.01°
Internal compensation over operating and temperature range
Robust anodized aluminium housing, IP67
Shock resistance up to 5,000 g
DC response
Customized connector cable available

Performance

The ASC TSF-360-CAN is based on proven fluidic tilt sensor technology, exploiting the physical principle that a liquid surface always aligns horizontally under gravity. Using a capacitive electrode arrangement, the tilt angle is measured with high resolution and accuracy.

The sensor integrates robust MEMS fluidic elements with digital electronics, ensuring accurate inclination data across the full 360° measurement range. Accuracy is better than 0.15° over the entire range, with typical values <0.10°. With a resolution of <0.01°, the sensor is suitable for highly demanding monitoring applications.

Measurement data is internally digitized and transmitted via a CAN or CANopen interface. Flexible supply voltage from 9 to 32 VDC ensures compatibility with a wide range of systems. Internal temperature compensation provides stable performance between −40 °C and +85 °C.

Usage conditions

The sensor is enclosed in a rugged anodized aluminium housing with IP67 protection, designed for reliable operation in harsh outdoor environments. With a standard 5-pin M12 connector, it is easy to integrate into existing systems. At just 80 g, it is lightweight and robust.

Applications

Alignment of cranes and construction machinery
Orientation of solar tracking systems
Vehicle alignment in agricultural applications
Renewable energy system monitoring
Bridge and structural tilt monitoring

Advantages of this sensor

The ASC TSF-360-CAN combines the simplicity of a fluidic tilt measurement principle with digital CAN connectivity. Engineers benefit from high accuracy, long-term stability, robust housing and straightforward integration, making it a reliable solution for industrial, renewable and infrastructure projects.

Do you need this sensor for your next project?

Request a no-obligation quote or send us your contact details for a free, no-obligation consultation. Our sales engineers will then contact you within a maximum of 1 to 2 working days.

Talk to an expert

Product downloads

Asc tsf 360 can digital fluidic tilt sensor en

Talk to our experts

Not exactly what you are looking for? We offer standard sensors, but can also help you with sensors adapted for you or a fully customised measurement solution. Contact us for advice or pricing.

Talk to an expert

Technical Specifications

Specification	Value
Measurement range	360° (uniaxial)
Accuracy (−10…+40 °C)	<0.10°
Accuracy (−40…+85 °C)	<0.15°
Resolution	<0.01°
Scale factor (sensitivity)	2000 mV/g
Sample rate	<180 ms
Settling time	<1 s
Supply voltage	9–32 VDC
Operating current consumption	20 mA (at 9 V), 9 mA (at 32 V)
Output	CAN/CANopen
Baud rate (standard)	250 kbit/s
Baud rate (options)	10–500 kbit/s selectable
Case isolation	Yes
Operating temperature	−40 °C … +85 °C
Storage temperature	−40 °C … +85 °C
Protection class	IP67
Sensing element	MEMS fluidic
Housing material	Anodized aluminium
Connector	5-pin M12 (IEC 61076-2-101)
Mounting	Screw holes for 2 mounting options
Weight	80 g
