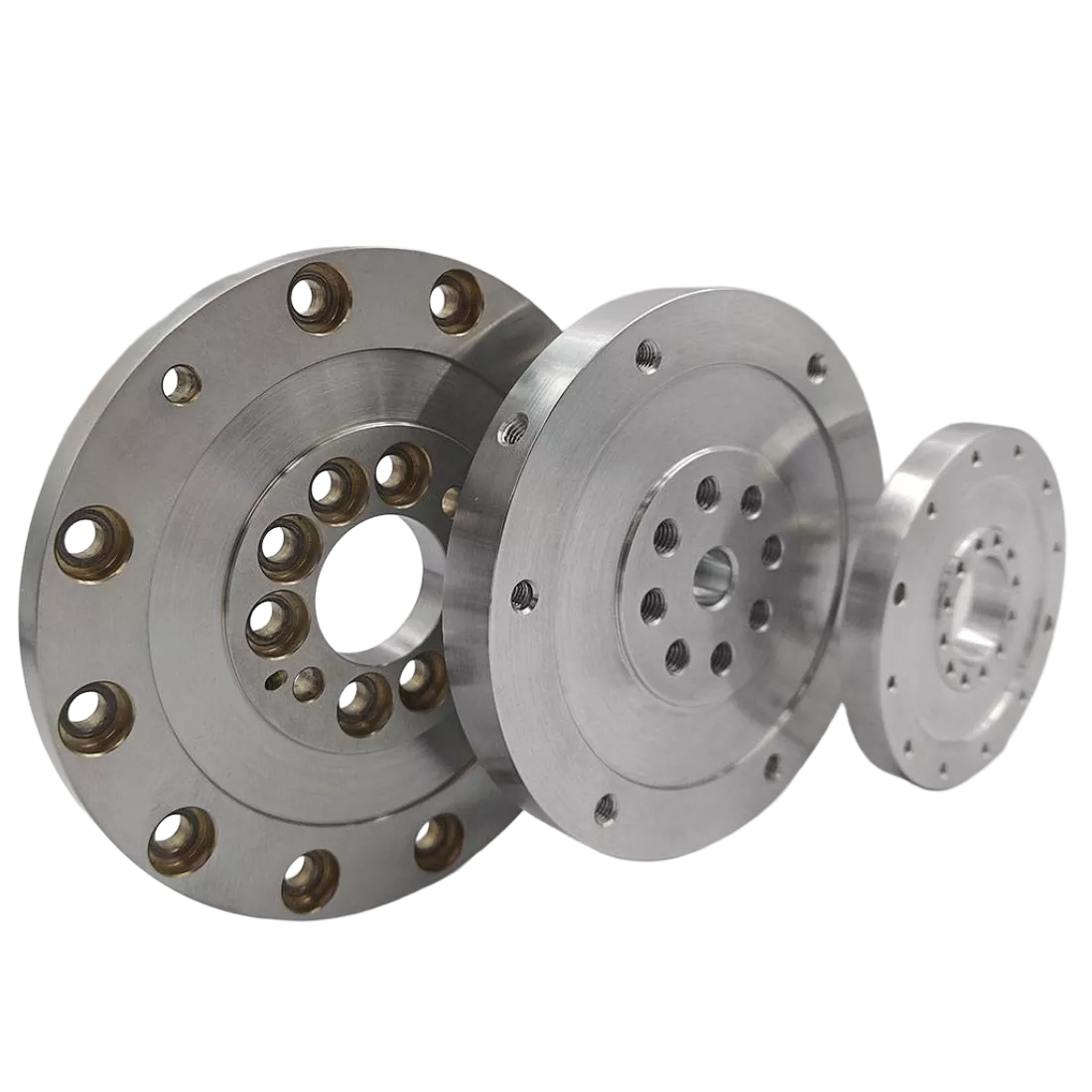

ATF336 Custom torque disc loadcell

---

Key features

• Low-profile torque design
• High resistance to side loads
• Suitable for harmonic drives
• Bespoke geometry and fixings
• IP65 sealed construction
• Traceable calibration included

---

Performance highlights

The ATF336 custom torque disc loadcell is designed for static torque measurement in compact mechanical assemblies. Its low-profile geometry makes it suitable for systems where installation height, mass and available space are critical design factors. The robust disc construction helps maintain reliable measurement performance even when the sensor is exposed to axial forces, lateral forces or bending moments.

Usage conditions

The ATF336 is suitable for OEM and end-user applications that require a tailored torque transducer. Variants for operation up to 250 °C or use in vacuum environments may be available on request. Standard specifications include IP65 sealing, a 2 m PVC insulated cable and a recommended excitation voltage of 10 V.

Possible applications

• Robot joints and robotic arms
• Harmonic drive torque measurement
• Animatronics
• Automotive test systems
• Aerospace test rigs
• Medical device testing
• Compact OEM torque assemblies

Advantages of choosing this product

The ATF336 is especially useful when a standard torque transducer does not fit the available space or load case. The design can be adapted to the required torque range, outer diameter, bore size, overall height and fixing layout. This gives engineering teams more freedom to integrate torque measurement directly into existing mechanical designs.

Other important features

• Static torque measurement
• Custom torque range available
• Clockwise positive output as standard
• Reverse signal wiring possible
• Traceable calibration certificate included
• Standard 1-year warranty

---
