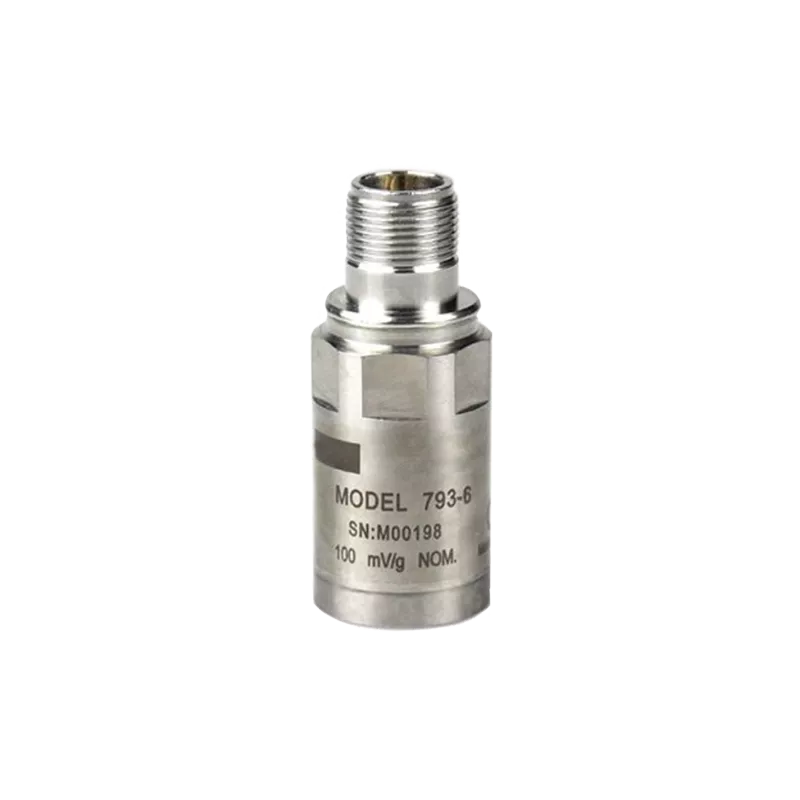

793-6 High-temperature Vibration Sensors
High temperature sensor
About the 793-6 High-temperature Vibration Sensors
Top exit, FireFET, high temp operation to 150°C/302°F, case isolated, 100 mV/g, ±10% sensitivity tolerance, MIL-C-5015 connector
Key features 793-6
- Rugged design
- Corrosion resistant
- Hermetically sealed
- Ground isolated
- ESD protection
- Reverse wiring protection
- 150° C operation
Do you need this sensor for your next project?
Request a no-obligation quote or send us your contact details for a free, no-obligation consultation. Our sales engineers will then contact you within a maximum of 1 to 2 working days.
Product downloads
Talk to our experts
Not exactly what you are looking for? We offer standard sensors, but can also help you with sensors adapted for you or a fully customised measurement solution. Contact us for advice or pricing.
Talk to an expertTechnical Specifications
| Specification | Value |
|---|---|
| Connector orientation | Top exit |
| Connector style | MIL-C-5015, 2-pin |
| Frequency response | 1 Hz - 12,000 Hz |
| Full-scale range | 50 g peak |
| Hazardous area approvals | Non-approved |
| Mounting thread | 1/4-28 UNF tapped hole |
| Resonance frequency | 20 kHz |
| Sensitivity | 100 mV/g |
| Sensitivity tolerance | ±10 % |
| Sensor output | Dynamic vibration (IEPE) |
| Temperature range | -50°C to +150°C |
| Weight | 135 grams |
