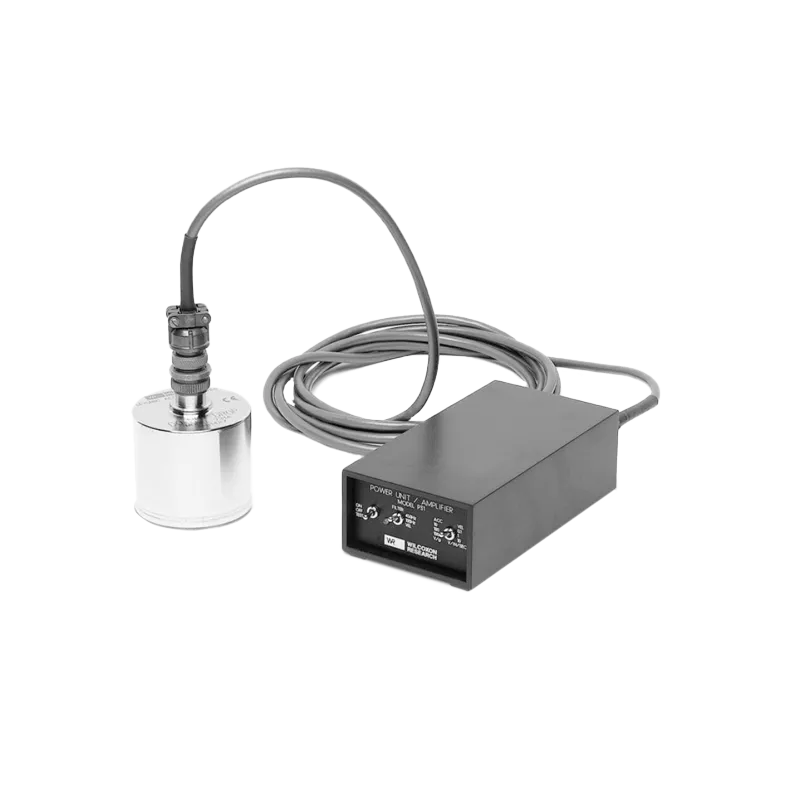

731A | P31 Low Frequency (Seismic) Vibration Sensors
Seismic accelerometer and power supply/amplifier
About the 731A | P31 Low Frequency (Seismic) Vibration Sensors
Top exit, ultra low frequency seismic accelerometer, case isolated, 2-pin MIL-C-5015 connector, 10 V/g, IEPE power supply, power amplifier, twinaxial BNC input, BNC Output
Key features 731A | P31
- Ultra high sensitivity
- Ultra low-noise electronics for clear signals at sub micro-g levels
- Low frequency capable
- Low pass filtered to eliminate high frequencies
- ESD protection
- Reverse wiring protection
Do you need this sensor for your next project?
Request a quotation today or leave your details to recieve more information from one of our experts.
Product downloads
Have it your way
Not exactly what you’re looking for? We offer standard sensors but can also help you with a tailor-made sensor or a complete measuring solution. Please contact us for advice or budgetary pricing.
Talk to an expertTechnical Specifications
| Specification | Value |
|---|---|
| Connector orientation | Top exit |
| Connector style | MIL-C-5015, 2-pin |
| Frequency response | 0.05 Hz - 450 Hz |
| Full-scale range | 0.5 g peak |
| Hazardous area approvals | Non-approved |
| Mounting thread | 3/8-16 tapped hole |
| Resonance frequency | 750 Hz |
| Sensitivity | 10 V/g |
| Sensitivity tolerance | ±10 % |
| Sensor output | Dynamic vibration (IEPE) |
| Temperature range | -10°C to +65°C |
