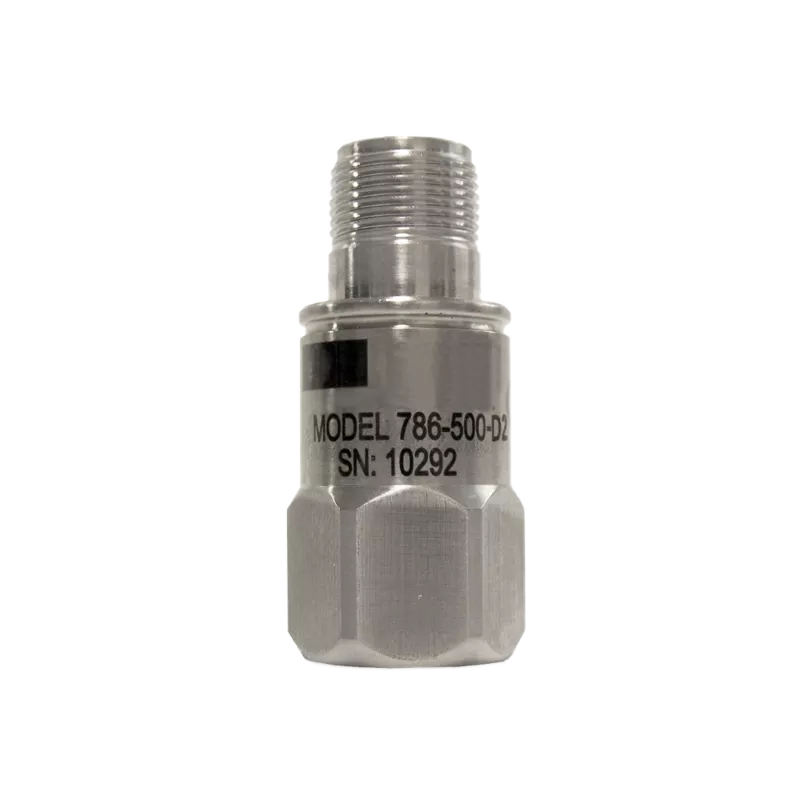

786-500-D2 Low Frequency (Seismic) Vibration Sensors
Top exit, broadband high sensitivity, low frequency sensor, MIL-C-5015 connector,500 mV/g, ±5% sensitivity tolerance
About the 786-500-D2 Low Frequency (Seismic) Vibration Sensors
Top-exit broadband sensor is certified for usage in hazardous areas. The high-sensitivity accelerometer offers an interior sensing element capable of producing 500 mV/g outputting clear signals at low vibration levels. The low-end frequency response makes it ideal for slow-speed applications such as wind turbine generators and cooling towers. A high top-end frequency response offers clear signals for early bearing fault detection, gearbox wear, and other high-speed applications. The 786-500-D2 is classifed for usage in Class I Division 2/Zone 2 locations where ignitable gases, vapors or liquids are handled, processed or used but are not usually present during normal operation and can only escape through accidental rupture, breakdown or leaks.
Key features 786-500-D2
- High sensitivity
- Extended low frequency response
- Clear signals at low vibration levels
- Class I, Div 2/Zone 2 certified, non-incendive
- Hermetically sealed
- ESD protected
- Reverse wiring protection
Do you need this sensor for your next project?
Request a no-obligation quote or send us your contact details for a free, no-obligation consultation. Our sales engineers will then contact you within a maximum of 1 to 2 working days.
Product downloads
Talk to our experts
Not exactly what you are looking for? We offer standard sensors, but can also help you with sensors adapted for you or a fully customised measurement solution. Contact us for advice or pricing.
Talk to an expertTechnical Specifications
Specification | Value |
---|---|
Connector orientation | Top exit |
Connector style | MIL-C-5015, 2-pin |
Frequency response | 0.2 Hz - 14,000 Hz |
Full-scale range | 10 g peak |
Hazardous area approvals | Class I, Div 2, Zone 2; ATEX II 3G Ex nA |
Mounting thread | 1/4-28 UNF tapped hole |
Resonance frequency | 30 kHz |
Sensitivity | 500 mV/g |
Sensitivity tolerance | ±5 % |
Sensor output | Dynamic vibration (IEPE) |
Temperature range | -50°C to +120°C |
Weight | 90 grams |
