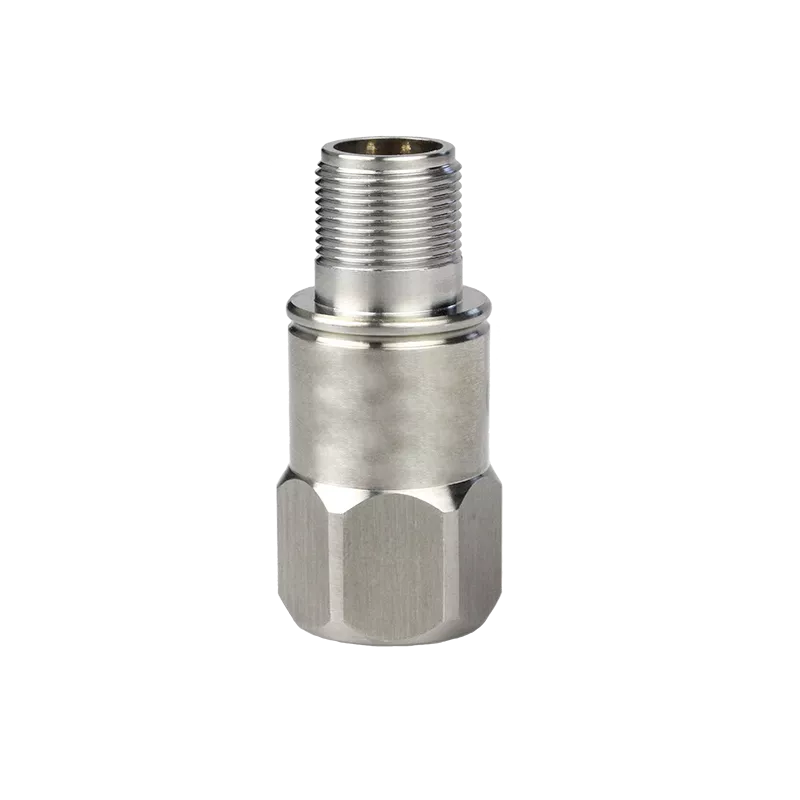

786V Piezoelectric Velocity Transducer
Wider frequency range than traditional velocity sensors
Key features
- Internally integrated to velocity
- 100 mV/ips sensitivity
- More compact size and lower cost than legacy velocity sensors without loss of performance
- Wide frequency range (1-12,000 Hz)
About the 786V Piezoelectric Velocity Transducer
Velocity sensor, 100 mV/ips sensitivity with ±5% tolerance, top exit 2-pin MIL-C-5015-style output connector, wider frequency range than traditional velocity sensors
Key features 786V Piezoelectric Velocity Transducer
- Internally integrated to velocity
- 100 mV/ips sensitivity
- More compact size and lower cost than legacy velocity sensors without loss of performance
- Wide frequency range (1-12,000 Hz)
Included accessories
- SF6 mounting stud
Do you need this sensor for your next project?
Request a no-obligation quote or send us your contact details for a free, no-obligation consultation. Our sales engineers will then contact you within a maximum of 1 to 2 working days.
Product downloads
Talk to our experts
Not exactly what you are looking for? We offer standard sensors, but can also help you with sensors adapted for you or a fully customised measurement solution. Contact us for advice or pricing.
Talk to an expertTechnical Specifications
Specification | Value |
---|---|
Amplitude nonlinearity | ±1% of F.S. |
Base strain sensitivity | 0.0005 in/sec/μstrain |
Bias output voltage, nominal | 12 VDC |
Case material | 316L stainless steel |
Current regulating diode | 2 - 10 mA |
Electromagnetic sensitivity, equiv. in/sec | 25 μin/sec/gauss |
Frequency response: | ± 10% 2 - 6,000 Hz / ± 3 dB 1 - 12,000 Hz |
Grounding | case isolated, internally shielded |
Mounting | 1/4-28 UNF tapped hole |
Output impedance, max | 200 Ω |
Protection rating | IP67 |
Relative humidity | 100% |
Resonance frequency, nominal | 30 kHz |
Sealing | hermetic |
Sensing element design | PZT, shear |
Sensitivity, ± 5%, 25°c | 100 mV/in/sec |
Shock limit | 5,000 g peak |
Temperature range | –50° to +120°C |
Transverse sensitivity, max | 5% of axial |
Velocity range | 50 in/sec peak |
Vibration limit | 500 g peak |
Voltage source | 18 - 30 VDC |
Weight | 90 grams |
