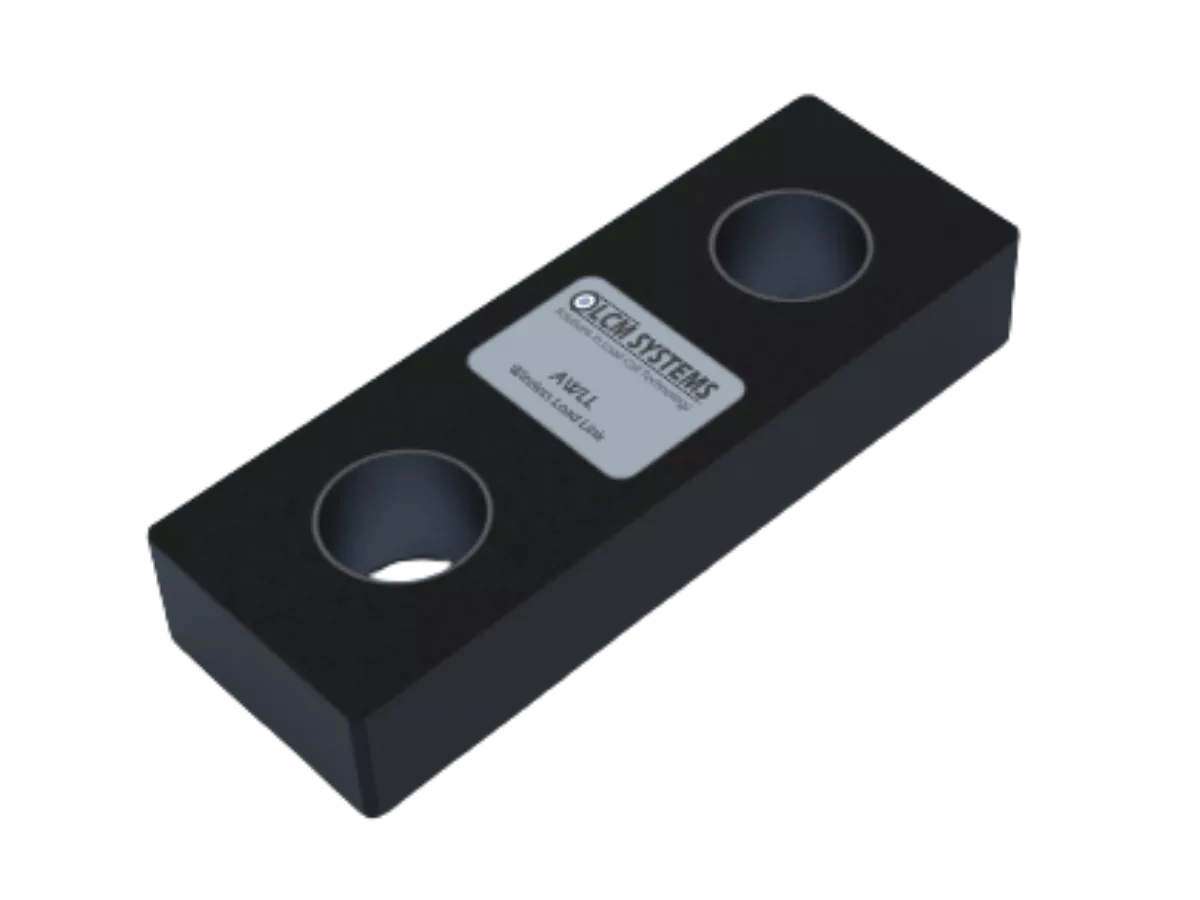

AWLL Aluminium wireless load link
Lightweight wireless load link made from aluminium alloy for crane weighing, proof loading and load monitoring in mobile or harsh environments.
Key features
- Capacities from 5 to 300 tonnes
- Lightweight aluminium construction
- Internal antenna and 2.4GHz license-free radio
- Accuracy of <±0.25% of reading
- 300 hours battery life with 2× AAA batteries
- Compatible with all T24 wireless instrumentation
Performance highlights
The AWLL wireless load link is designed for lifting, weighing and force measurement in demanding conditions. Made from lightweight aluminium alloy, it is ideal for mobile applications or temporary setups. The AWLL is widely used for crane weighing, proof testing, rigging force monitoring, and suspended load weighing. It features a high safety factor of 5:1 and proof load tested to 200%.
Usage conditions
The internal antenna design provides maximum durability during handling. The unit uses two standard AAA alkaline batteries, delivering over 300 hours of continuous use. The device operates at 2.4 GHz radio frequency with a range of >300 metres (line of sight) and an update rate of 3 measurements per second. It is sealed to IP65 and operates in ambient temperatures from -20 to +50 °C.
Possible applications:
- Underhook crane weighing
- Cable tension monitoring
- Crane and hoist proof loading
- Calibration with water weights
- Load monitoring in logistics and warehouses
Advantages of choosing this product
The AWLL offers wireless flexibility for various measurement setups. It is compatible with the T24 wireless ecosystem, allowing for handheld displays, USB receivers, analog output modules, or cloud-based software reporting. Installation is quick and safe, making it a great solution for critical lifting or transport jobs.
Other important features:
- Internal 2.4GHz wireless communication
- Resolution from 0.001t (5t version) to 0.1t (300t version)
- Accuracy <±0.25% of reading
- IP65 environmental protection
- Supplied with a carry case
- Optional accessories: wireless alarm, base station, repeater, software
Do you need this sensor for your next project?
Request a no-obligation quote or send us your contact details for a free, no-obligation consultation. Our sales engineers will then contact you within a maximum of 1 to 2 working days.
Product downloads
Talk to our experts
Not exactly what you are looking for? We offer standard sensors, but can also help you with sensors adapted for you or a fully customised measurement solution. Contact us for advice or pricing.
Talk to an expertTechnical Specifications
| Specification | Value |
|---|---|
| Rated load | 5, 12, 25, 50, 100, 200, 300 |
| Proof load | 200% of rated load |
| Safety factor | >500% of rated load |
| Accuracy | <±0.25% of reading |
| Power supply | 2× AAA alkaline batteries |
| Battery life | >300 hours (with 1.2Ah batteries) |
| Transmission range | >300 metres (clear line of sight) |
| Radio frequency | 2.4GHz (license-free) |
| Update rate | 3 times per second |
| Operating temperature | -20 to +50°C |
| Compensated temperature range | -10 to +50°C |
| Zero temperature coefficient | <±0.01% of rated load/°C |
| Span temperature coefficient | <±0.01% of rated load/°C |
| Environmental protection level | IP65 |
