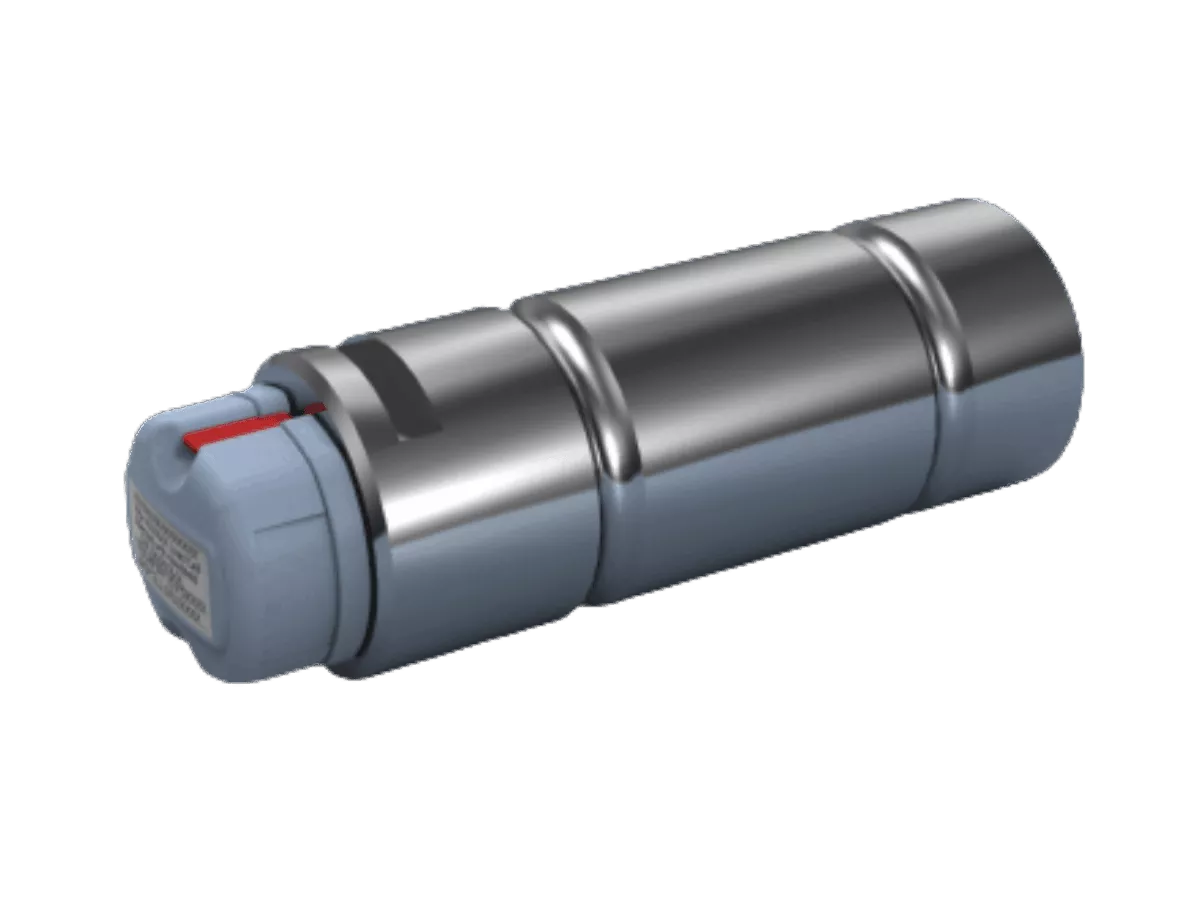

LPW Wireless stainless steel load measuring pin
Wireless load measuring pin with stainless steel body, internal antenna and long battery life for real-time force monitoring in demanding environments.
Key features
- Wireless load monitoring up to 1500 t
- Stainless steel, sealed to IP67
- Up to 600 m wireless range
- ATEX Intrinsically Safe option
- Integrated battery with 300h runtime
- Wide compatibility with T24 wireless systems
Performance highlights LPW Wireless stainless steel load measuring pin
The LPW Series is a high-performance wireless load measuring pin with capacities from 3.5 to 1500 tonnes. Designed for quick integration into existing mechanical systems, it offers real-time, accurate force monitoring with a robust wireless transmission up to 600 meters.
Usage conditions
Each unit is machined from high-tensile stainless steel, environmentally sealed to IP67, and includes a compact polyamide telemetry housing. The internal electronics are sealed from environmental exposure, and power is provided by two easily replaceable AAA batteries with up to 300 hours of continuous operation.
Possible applications
- Crane and hoist overload protection
- Winch load and cable force monitoring
- Mooring tension systems
- Load shackles and bearing block measurement
- Wire tension dynamometers
Advantages of choosing this product
With its plug-and-play design, the LPW is ideal for retrofit or new installations. It replaces existing load-bearing pins without structural changes, allowing fast deployment. It integrates seamlessly with the T24 wireless ecosystem for scalable and advanced monitoring setups.
Other important features
- Supplied with or without anti-rotation plate
- ATEX Ex i certified models available
- Software and tablet PC options for datalogging
- Compatible with wireless displays, base stations and output modules
Do you need this sensor for your next project?
Request a no-obligation quote or send us your contact details for a free, no-obligation consultation. Our sales engineers will then contact you within a maximum of 1 to 2 working days.
Product downloads
Talk to our experts
Not exactly what you are looking for? We offer standard sensors, but can also help you with sensors adapted for you or a fully customised measurement solution. Contact us for advice or pricing.
Talk to an expertTechnical Specifications
| Specification | Value |
|---|---|
| Rated load | 3.5 to 1500 tonnes |
| Proof load | 150% of rated load |
| Ultimate breaking load | >300% of rated load |
| Non-linearity | <±1.0% of rated load (typical) |
| Non-repeatability | <±0.1% of rated load |
| Transmission distance | Up to 600 m (clear line of sight) |
| Battery life | >300 hours (1.2Ah) |
| Battery type | AAA Alkaline or L92 Lithium (x2) |
| AAA Alkaline or L92 Lithium (x2) | -20 to +55°C (standard), -20 to +50°C (Ex i) |
| ATEX certification | II 2G Ex ib IIC T4 Gb |
| Environmental protection | IP67 |
| Telemetry housing | Polyamide resin |
