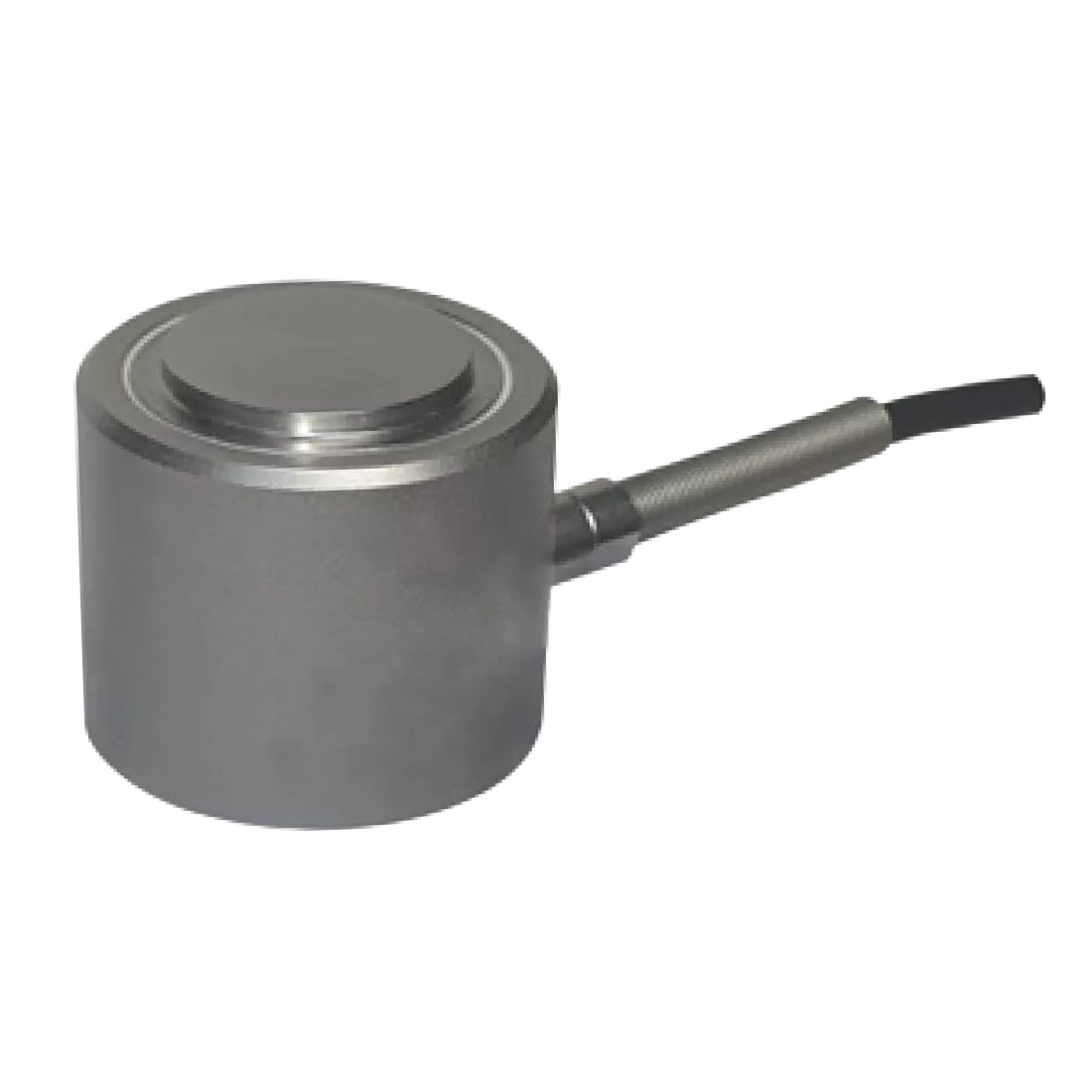

ACMLR Compression miniature high capacity load cell
Compact compression load cell designed for high-force measurements up to 15 tons. Suitable for space-constrained industrial and OEM applications requiring reliable force feedback and high overload tolerance.
Key features
- Compression load cell up to 15 t
- Compact stainless steel design
- High overload resistance
- Stable 2 mV/V output
- IP65 environmental protection
Performance highlights ACMLR Compression miniature high capacity load cell
The ACMLR series is a miniature compression load cell engineered for high-capacity force measurement in compact installations. With rated capacities of 5, 10, and 15 tons, the sensor combines a small mechanical footprint with reliable strain gauge technology, delivering a nominal output of 2 mV/V for accurate force monitoring.
Usage conditions
Manufactured from 17-4PH stainless steel, the ACMLR load cell is designed for demanding industrial environments. The sensor operates within a temperature range of –20 to +80 °C and offers IP65 protection against dust and water ingress. High safe and ultimate overload ratings support use in applications with dynamic or shock loads.
Possible applications
- Industrial press force monitoring
- Structural load testing setups
- Heavy-duty machinery integration
- OEM force measurement modules
- Test benches with limited installation space
Advantages of choosing this product
The ACMLR series offers a combination of high load capacity, compact dimensions, and robust mechanical design. Its high overload tolerance and stable electrical output make it suitable for both permanent installations and prototype or test environments where reliability and repeatability are critical.
Other important features
- Low non-linearity and hysteresis
- Shielded 4-wire electrical connection
- Stable performance over temperature
- Multiple capacity variants in one seriesAbout the ACMLR Series
Do you need this sensor for your next project?
Request a no-obligation quote or send us your contact details for a free, no-obligation consultation. Our sales engineers will then contact you within a maximum of 1 to 2 working days.
Product downloads
Talk to our experts
Not exactly what you are looking for? We offer standard sensors, but can also help you with sensors adapted for you or a fully customised measurement solution. Contact us for advice or pricing.
Talk to an expertTechnical Specifications
| Specification | Value |
|---|---|
| Rated capacity (R.C.) | 5, 10, 15ton |
| Rated output(R.O.) | 2mV/V (Norminal) |
| Non-linearity | ≤0.5% R.O. |
| Hysteresis | ≤0.5% R.O. |
| Non-repeatability | ≤0.2% R.O. |
| Creep error | ≤0.1% in 20min. |
| Zero balance | ≤1% R.O. |
| Compensated temperature range | -10 ~ 70°C |
| Operating temperature range | -20 ~ 80°C |
| Temp. effect on rated output | ≤0.01% LOAD/°C |
| Temp. effect on zero balance | ≤0.01% R.O./°C |
| Terminal input resistance | 410 Ohms ± 30 Ohms |
| Terminal output resistance | 350 Ohms ± 5 Ohms |
| Insulation resistance (Min.) | 2000 MOhms at 50V DC |
| Excitation voltage | 3~12V(Recommended), 15V(Max.) |
| Electrial connection | Ø3mmx1.5m (28AWG x 4Core Shielded) |
| Protection class | meets IP 65 |
| Safe overload | 150% R.C |
| Ultimate overload | 300% R.C |
| Material | Stainless steel (17-4PH) |
