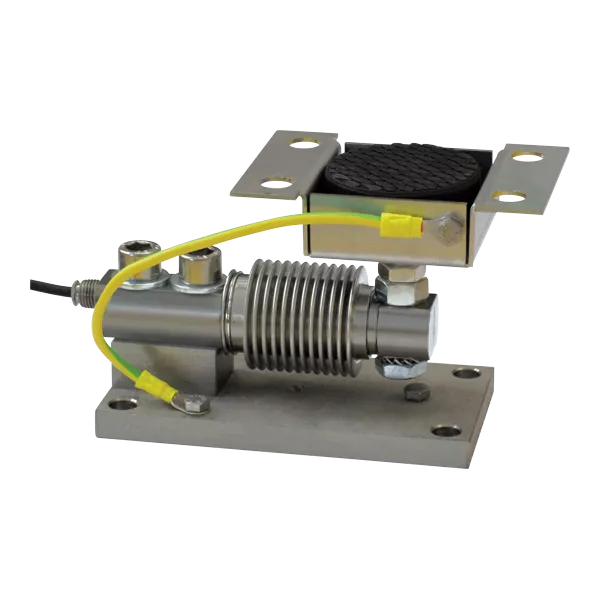

TF PV-Z Mounting Kit for Loadcells

Provided with a AISI 304 stainless steel plate with selfcentring joint foot M12x1.75 to compensate for misalignment of the support plates


Key features

  • Range: 30 to 1000kg
  • For loadcells FCAX, FCAL
  • Adjustable upper plate in AISI 304 stainless steel (PPV).
  • Lower plate and block in AISI 304 stainless steel.
  • Misalignment compensation of the support plates structure.
  • Adjustable height.

About TF PV-Z

Mounting kit provided with a AISI 304 stainless steel plate with self-centring joint foot M12x1.75 to compensate for misalignment of the support plates. Anti-tilt device against lateral forces. Stainless steel screw.
Max static load 500/1000 kg.

Other features TF PV-Z Mounting Kit

  • Constraint against lateral forces and anti-tilt by in (TFPV, TFPV2000) AISI 304 stainless steel or (TFPVZ)
  • Galvanized steel self-centring joint foot.
  • Locking screw to avoid damage during transport and installation.
