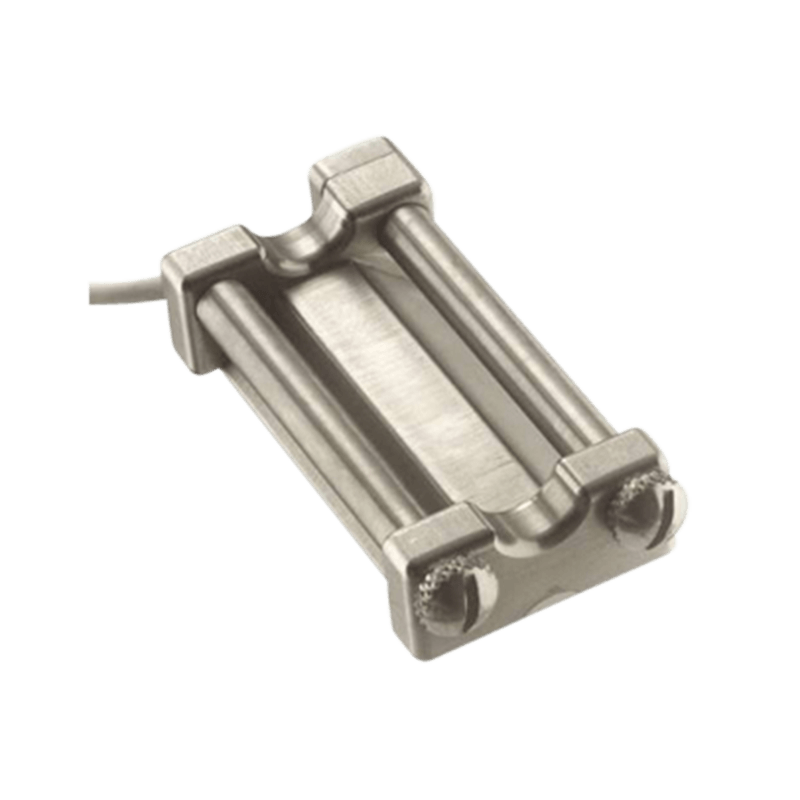

EL20-S458 Force Sensor for Automotive

---

Nyckelfunktioner

• Super low mass titanium design : minimizes F=MA errors in measurement
• Ultra low mass slotted titanium axles available
• 1KL (5KN) - 5KL (25KN) tension ranges
• Low noise
• Optional linearized and high level output
• Robust user replaceable cabling

---

About the EL20-S458 Force Sensor for Automotive

The EL20-S458 provides a super low mass titanium structure to minimize F=MA errors during the crash event. All exterior surfaces are smoothed to prevent snagging on dummy or air bag materials; smoothed exterior profiles protect your expensive crash test dummy from damage while eliminating drag and frictional error.

The EL20-S458 is offered with optional ultra low mass slotted titanium axles and super robust armoured cable exit from the device. The user replaceable cable ensures that even if your cabling is damaged, replacement cables can be rapidly wired and your test facility remains in full operation at all times. The low noise Wheatstone bridge consists of metal foil strain gages which provide full scale outputs of typically 2 V/V of excitation.

The EL20-S458 is also available with internal linearization (Option B) to provide +/- 0.5% FS maximum nonlinearity. Option C provides linearization and high level output of 0.5 to 4.5 V. The EL20-S458 can be configured with a variety of options to fine tune the instrument to your application: select from several standard compensated temperature ranges, slotted or knurled axles, input voltages, lead lengths or specify unique combinations of these options.

The EL20-S458 belt tension load cell can be fine-tuned to meet your crash test or military test needs.

Applications for EL20-S458

• Automotive crash test
• Military payload delivery
• Sport and military parachute tether loads
• Automatic reserve chute deployment systems

---
