A875 Mini Tuff Tilt MEMS Tiltmeter
Miniature MEMS Tiltmeter combines high precision and durability in a miniaturized and economical instrument package (RoHS Compliant)
Nyckelfunktioner
- MEMS Technology
- RoHS compliant
- Superior measurement accuracy
- Angular Range: ±5°-±30°
- Output Voltage Range (Vdc): 0.5-4.5
- FRO Tolerance (% max): ±0.30
- Scale Factor (V/°): 0.4000 ±0.0012/0.1333 ±0.0004/0.0667 ±0.0002
- SF Temp Coefficient (ppm/°C, max): ±150
About the A875 Mini Tuff Tilt MEMS Tiltmeter

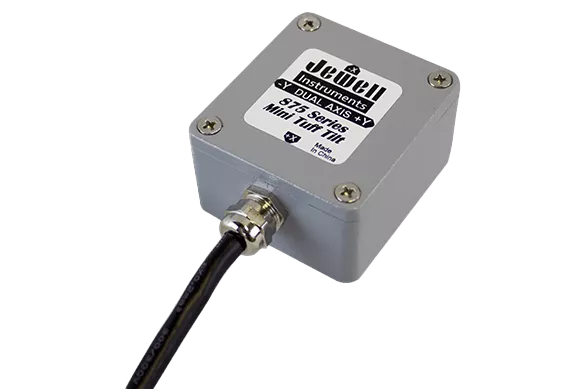

The model 875 Mini “Tuff Tilt” Tiltmeter combines high precision and durability in a miniaturized and economical instrument package. Using MEMS technology, the 875 delivers superior measurement accuracy with virtually no long-term drift and a resolution of 0.05°. Output options include 0.5-4.5Vdc, 4-20mA and digital RS485. All units are rated IP67 waterproof for advanced protection from the elements. Use the 875 Mini “Tuff Tilt” for structural monitoring, angle measurement and control, platform leveling, testing and research, OEM and more.
This product is RoHS compliant.
Suitable Applications
Platform Leveling/Positioning
Structural Monitoring
Construction Monitoring
Industrial Machinery Positioning
Radial Gate Measurement & Control
