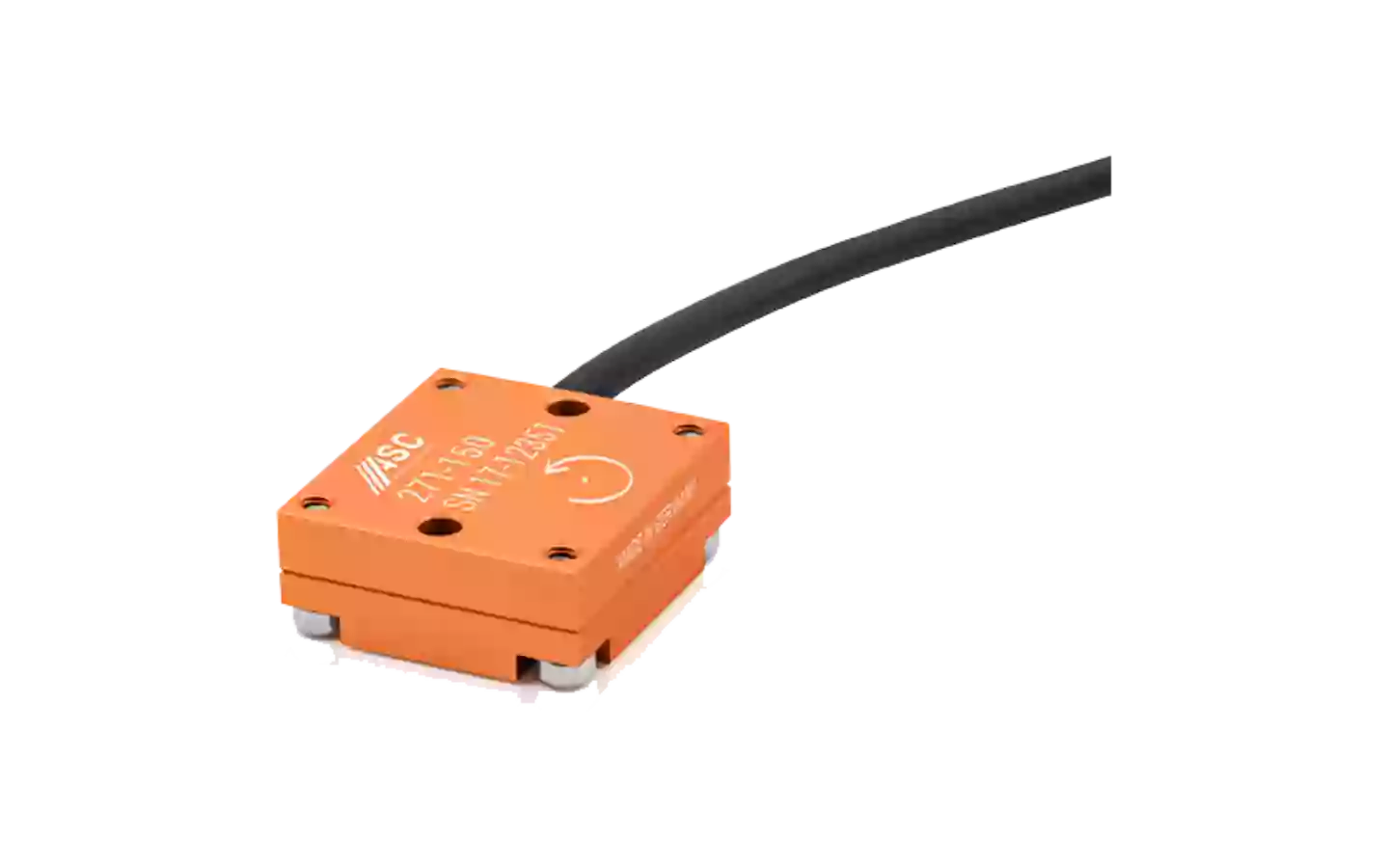

ASC 271 Uniaxial MEMS Gyroscope

Uniaxial MEMS vibrating ring gyroscope with anodized aluminum housing for precision navigation, vehicle dynamics and stabilization


Key features

  • Uniaxial MEMS vibrating ring technology
  • Configurable ranges ±75 °/s, ±150 °/s, ±300 °/s, ±900 °/s
  • Bias instability: 12 °/hr
  • Angular Random Walk (ARW): 0.2 °/√hr
  • Wide bandwidth up to 150 Hz
  • Excellent shock and vibration rejection
  • Lightweight anodized aluminum housing (IP65)
  • Custom cable length and connector options

Performance

The ASC 271 is a uniaxial MEMS vibrating ring gyroscope engineered for precise angular rate measurement in industrial and automotive environments. With selectable ranges from ±75 °/s to ±900 °/s, bias instability of 12 °/hr, and angular random walk of 0.2 °/√hr, it ensures highly stable performance. Its balanced ring design minimizes sensitivity to shocks and vibrations, while delivering an analog voltage output proportional to angular rate.

Usage conditions

The ASC 271 features a lightweight anodized aluminum housing that provides case isolation and IP65 protection. It operates reliably across −40 °C to +85 °C and withstands shocks up to 500 g (operational) and 10,000 g (survival). Power supply ranges from 5–40 VDC, with low power consumption of just 6 mA during operation.

Possible applications

  • Precision navigation and pointing
  • Automotive in-car navigation
  • Dead reckoning GPS aiding
  • Vehicle yaw, pitch and roll rate sensing
  • Motion tracking and gesture sensing
  • Precision agriculture UAVs and AGVs
  • Camera, antenna and platform stabilization
  • Robotics and industrial automation

Advantages of choosing this product

The ASC 271 combines high stability with robust shock resistance in a compact housing. Its uniaxial design makes it ideal for simple yaw or single-axis stabilization tasks, while offering reliability in demanding environments.

Do you need this sensor for your next project?

Request a no-obligation quote or send us your contact details for a free, no-obligation consultation. Our sales engineers will then contact you within a maximum of 1 to 2 working days.

Talk to an expert

Product downloads

Talk to our experts

Not exactly what you are looking for? We offer standard sensors, but can also help you with sensors adapted for you or a fully customised measurement solution. Contact us for advice or pricing.

Talk to an expert

Technical Specifications

Specification Value
Measurement ranges ±75, ±150, ±300, ±900 °/s
Bias instability 12 °/hr
Angular random walk 0.2 °/√hr
Bandwidth 150 Hz
g-sensitivity 0.08 °/s/g typ., 0.2 max
Power supply 5 to 40 VDC
Current consumption 6 mA
Non-linearity 0.06 % typ., 0.15 % max
Shock limit 500 g (operational), 10,000 g (survival)
Protection class IP65
Temperature range -40 °C to +85 °C
Weight (without cable) 10 g
Mounting M2.5 / M4 screws
