755-High-Gain and 756-Mid-Range Miniature Tilt Sensors

Small, lightweight sensors ideal for precise measurement and control applications where space is limited

Key features

Small and lightweight
Precise measurement and control applications where space is limited
For special vacuum applications
Available with size or weight restrictions

About the 755 & 756 Miniature Tilt Sensors

– compact, high-precision tilt sensors for limited installation space

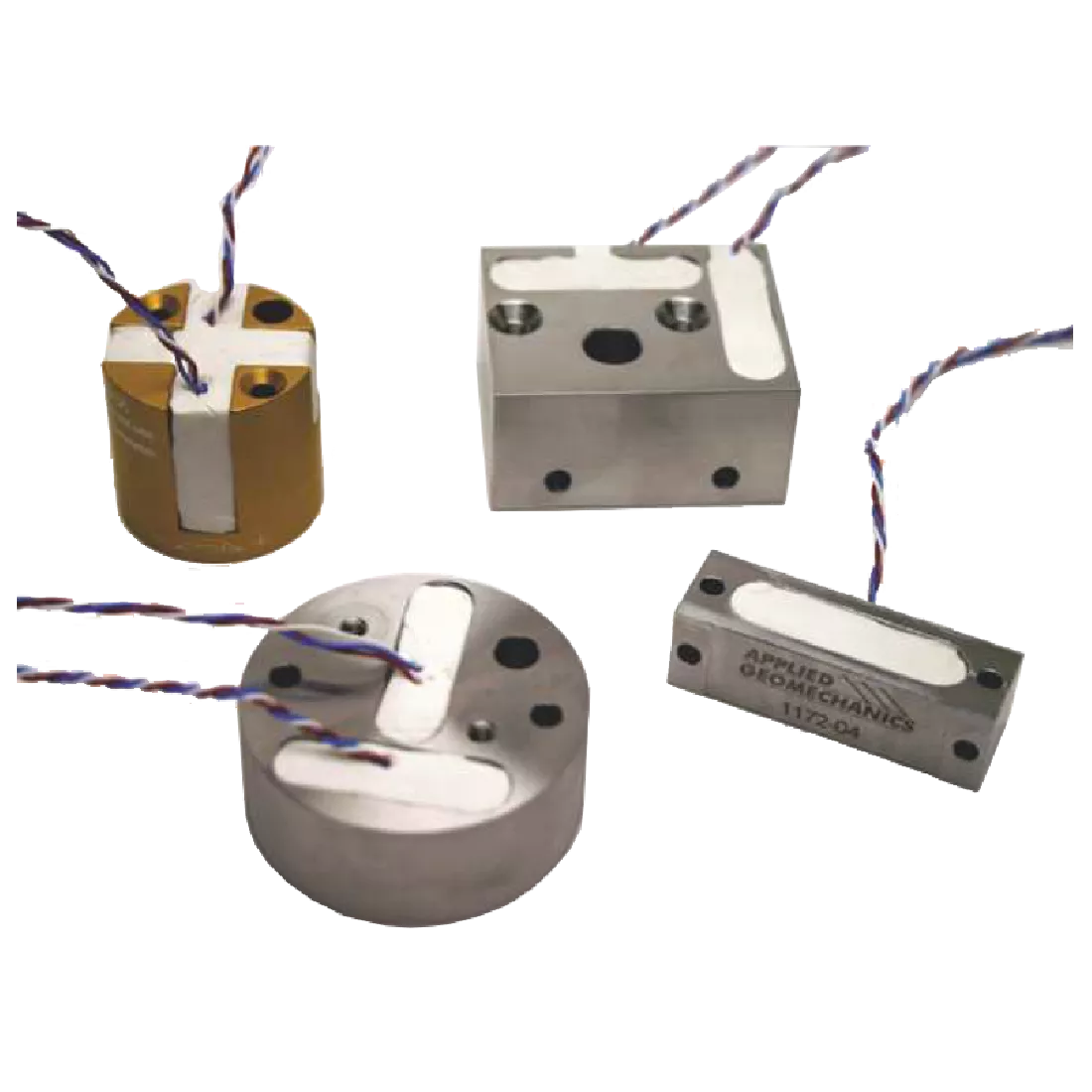

The 755 and 756 Series from Jewell Instruments are miniaturized tilt sensor modules (single- or dual-axis) that combine electrolytic tilt transducers in a rugged stainless-steel or aluminum housing. They are designed for applications with space or weight constraints—without compromising precision—using the same high-accuracy sensing elements found in the 500 and 700 Series tiltmeters.

Two variants to match your measurement task

755 Series (High-Gain): for very small tilt angles with high amplification
756 Series (Mid-Range): for larger tilt ranges and more general-purpose applications

Key benefits at a glance

Extremely compact & lightweight – ideal for direct mounting where space is tight
Single- or dual-axis (model dependent) for precise 1D/2D tilt measurement
Flexible mounting: drilled holes for vertical or horizontal installation
Vacuum-compatible versions (low outgassing) available for high-vacuum environments
Remote operation possible: sensors can be operated up to 100 m from the signal conditioner via cable

Typical applications

These compact modules are commonly used for precision alignment and positioning, for example:

X-ray mirrors
Telescope mounts
Wind tunnel models
Medical technology

The 755/756 Miniature Tilt Sensors are the right choice when you need high-precision tilt measurement in a very compact form factor—optionally vacuum-compatible—and want flexible single- or dual-axis integration into your measurement or control system.

Do you need this sensor for your next project?

Request a no-obligation quote or send us your contact details for a free, no-obligation consultation. Our sales engineers will then contact you within a maximum of 1 to 2 working days.

Talk to an expert

Product downloads

Talk to our experts

Not exactly what you are looking for? We offer standard sensors, but can also help you with sensors adapted for you or a fully customised measurement solution. Contact us for advice or pricing.

Talk to an expert

Technical Specifications

Specification	Value
Dimensions	See table
Environmental	-25 to +80°C operation and storage, non-submersible
Ks temp coefficient (%/°c)³⁺⁴	0.04%/°C (typical) / 0.05%/°C (typical)
Kz temp coefficient (bias/°c)⁴	±3 μradians/°C (typical) / ±10 μradians/°C (typical)
Linear range	755- Series ±0.25° / 756- Series ±5°
Materials	304 SS (Anodized Al available on request)
Natural frequency	755-Series 0.8 Hz / 756-Series 1.3 Hz
Non-linearity (typical)²	755-Series 1% half span (7% full span) / 756-Series 0.5% half span (2% full span)
Repeatability	755-Series 1 μradian (static) / 756-Series 2 μradians (static)
Resolution	755-Series <0.1 μradian (0.02 arc sec) / 756-Series 1.0 μradian (0.2 arc sec)
Time constant	755-Series 0.5 sec / 756-Series 0.4 sec
Total range (max)¹	755- Series ±0.5° / 756- Series ±10°
