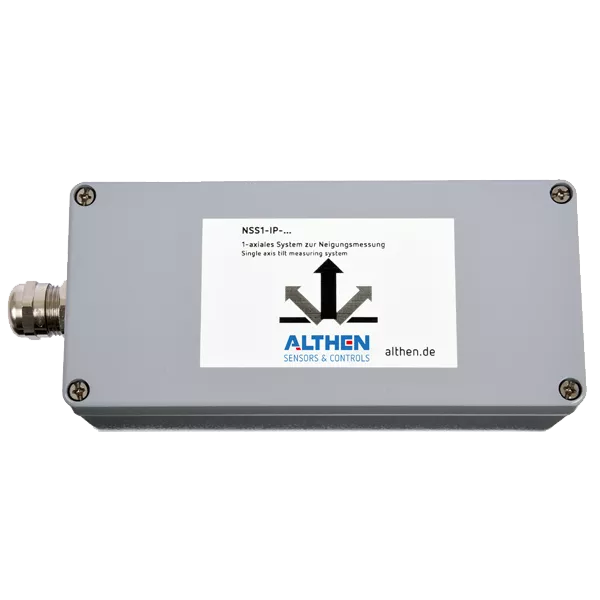

NSS1-IP Tilt Measuring System
Single axis tilt switching system with 2 switching contacts
Key features
- Measuring range ±3° up to ±60° or 0 … 90°
- Switching accuracy max. 0,5% of measuring range
- Supply voltage 18 … 30 VDC
- Output: 2 potential-free switching contacts (max. 30VDC/0,5A)
About the NSS1-IP tilt monitoring system
The industrial single-axis NSS1-IP system for monitoring tilt angle combines a non-contact tilt sensor with sensor-matched electronics. It provides precise tilt monitoring on the X axis and is designed for side-wall mounting. Depending on the version, the monitored tilt range is ±3° to ±60° or 0…90°. Using potentiometers (visible after opening the housing cover), the limit switching points can be freely set across the entire measurement range. The relays feature potential-free contacts with a maximum switching rating of 30 VDC / 0.5 A.
The tilt switch system is housed in a rugged EMC die-cast aluminum enclosure (IP66), making it ideal for harsh industrial environments.
Highlights
- 1 measuring axis: X
- Ranges: preferred ±3°, ±5°, ±10°, ±15°, ±20°, ±30°, ±45°, ±60° as well as 0…10°, 0…30°, 0…45°, 0…60°, 0…90° (others on request)
- Output: 2 potential-free relay contacts (max. 30 VDC / 0.5 A)
- Limits: 2 freely adjustable switching points via potentiometers
- Switching accuracy: max. 0.5% of full range (at 23 °C)
- Supply: 18…30 VDC, reverse polarity protected; power consumption approx. 4 W
- Frequency range (-3 dB): 0.5 Hz
- Protection & ruggedness: IP66, EMC die-cast aluminum housing; potted electronics (protection against moisture/vibration)
- Connection: EMC cable gland M16×1.5 to internal spring-clamp terminals
Typical applications
- Tilt monitoring on machines, systems, and test rigs
- Safety/limit monitoring for defined tilt conditions (relay outputs)
- Applications in harsh industrial environments requiring a rugged IP66 enclosure
Do you need this sensor for your next project?
Request a no-obligation quote or send us your contact details for a free, no-obligation consultation. Our sales engineers will then contact you within a maximum of 1 to 2 working days.
Product downloads
Talk to our experts
Not exactly what you are looking for? We offer standard sensors, but can also help you with sensors adapted for you or a fully customised measurement solution. Contact us for advice or pricing.
Talk to an expertTechnical Specifications
| Specification | Value |
|---|---|
| Cross-sensitivity | < 1% up to ±60° |
| Dimensions (w x h x d) | 175 x 80 x 57 mm (without EMC cable glands) |
| Electrical connection | M16 x 1,5 EMC cable glands on internal spring-cage terminal blocks |
| Enclosure | EMC-safe aluminium die-cast enclosure |
| Frequency range (-3db) | 0,5 Hz |
| Max. power rating of relay | 30 VDC / 0,5 A |
| Number of measuring axis | 1 |
| Number of relay switching contacts | 2 |
| Power consumption | ca. 4 W |
| Preferred measuring range | ±3°, ±5°, ±10°, ±15, ±20, ±30, ±45°, ±60° 0 - 10°, 0 - 30°, 0 - 45°, 0 - 60°, 0 - 90° other measuring ranges on request |
| Protection class | IP66 |
| Supply voltage | 18 - 30 VDC, electronics protected against voltage reversal |
| Switching accuracy at 23 °c | max. 0,5% of measuring range |
| Temperature, operating | -20 to +60 °C |
| Temperature, storage | -20 to +60 °C |
| Test signal | 2 - 10 V, not short-circuit proof |
| Weight | 1.000 g |
