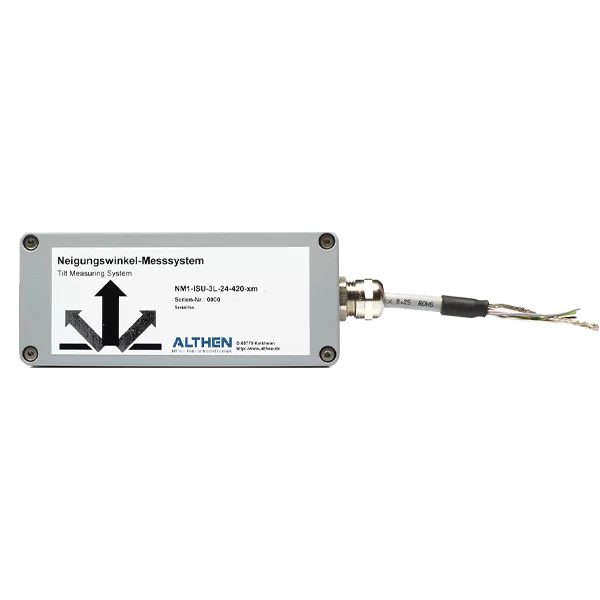

NM1-ISU-IP Tilt Measuring System
Single axis tilt measuring system with digital and analog connection
Key features
- Single Axis Industrial Tilt Measuring System with RS232-Data Interface
- Supply voltage 22 … 26 VDC
- Adjustable measuring range up to 360°
- Accuracy ±0.2°
- RS232 Data Interface, optionally analogue output 4 … 20 mA)
About the NM1‑ISU‑IP Tilt Measurement System
The NM1‑ISU‑IP is an industrial, single-axis tilt measurement system for precise detection of inclination angles in demanding environments. It is specifically designed for sidewall mounting and provides reliable monitoring of tilt changes along the X-axis.
The system combines a contactless tilt sensor with advanced electronics for accurate measurement data. Tilt ranges can be flexibly set via an internal DIP switch – including ranges from ±10° to ±180°, depending on the version.
Measured values are output via a serial RS232 interface. Optional variants also provide a scalable analog output (4 … 20 mA) for easy integration into common control and automation systems.
The measurement system is housed in a robust, EMC-protected aluminum die-cast enclosure with IP66 protection, resistant to mechanical stress, dust, and moisture – ideal for harsh industrial environments.
Technical Highlights
- Single-axis tilt measurement along the X-axis
- Adjustable tilt ranges via DIP switch (e.g., ±10° to ±180°)
- High accuracy: ±0.2° under standard conditions
- RS232 interface for digital output
- Optional analog output (4 … 20 mA)
- Supply voltage: 22 … 26 V DC with reverse polarity protection
- Measurement frequency: approx. 0.4 Hz
- Repeatability / hysteresis: ±0.1°
- Operating temperature: –20 °C to +60 °C
- Robust IP66 enclosure, EMC-protected aluminum
Typical Applications
The NM1‑ISU‑IP is ideal for:
- Machine and plant positioning
- Component alignment and tilt monitoring
- Automation and control systems
- Industrial process and manufacturing environments
- Measurement tasks with variable tilt ranges
The NM1‑ISU‑IP offers flexible tilt ranges, a digital RS232 interface, and an optional 4 … 20 mA analog output, making it highly versatile. Its robust construction and high measurement stability ensure reliable results even in harsh conditions – ideal for demanding industrial and automation applications.
Do you need this sensor for your next project?
Request a no-obligation quote or send us your contact details for a free, no-obligation consultation. Our sales engineers will then contact you within a maximum of 1 to 2 working days.
Product downloads
Talk to our experts
Not exactly what you are looking for? We offer standard sensors, but can also help you with sensors adapted for you or a fully customised measurement solution. Contact us for advice or pricing.
Talk to an expertTechnical Specifications
| Specification | Value |
|---|---|
| Accuracy | ±0.2° |
| Adjustable measuring range | Measuring range about internal DIP-Switch ±10°, ±20°, ±30°, ±45°, ±60°, ±90°, ±120°, ±180° Inclination |
| Data interface/analogue output/ power rating | RS232 Data Interface, 4 - 20 mA (Option …-420..-), max. 500 Ohm |
| Dimensions (w x h x d) | 150 x 65 x 36 mm (without EMC-cable gland) |
| Electrical connection: | Standard: 3 m connecting cable (optionally are cable versions up to 10 m available) Type of cable: Unitronic FD CP plus 3 x 2 x 0.25 mm² |
| Enclosure | EMC-safe aluminium die-cast enclosure |
| Hysteresis | ±0.1° |
| Measuring frequency | 0.4 Hz |
| Power consumption: | ca. 3 W |
| Repeatability | ±0.1° |
| Supply voltage: | 22 - 26 VDC, electronics protected against voltage reversal |
| Temperature error | ±0.015°/°C |
| Temperature, operating | -20 to +60 °C |
| Temperature, storage | -20 to +60 °C |
| Weight | Approx. 630 g with 3 m connecting cable, electronics not moulded in casting compound Approx. 1150 g with 10 m connecting cable, electronics not moulded in casting compound |
