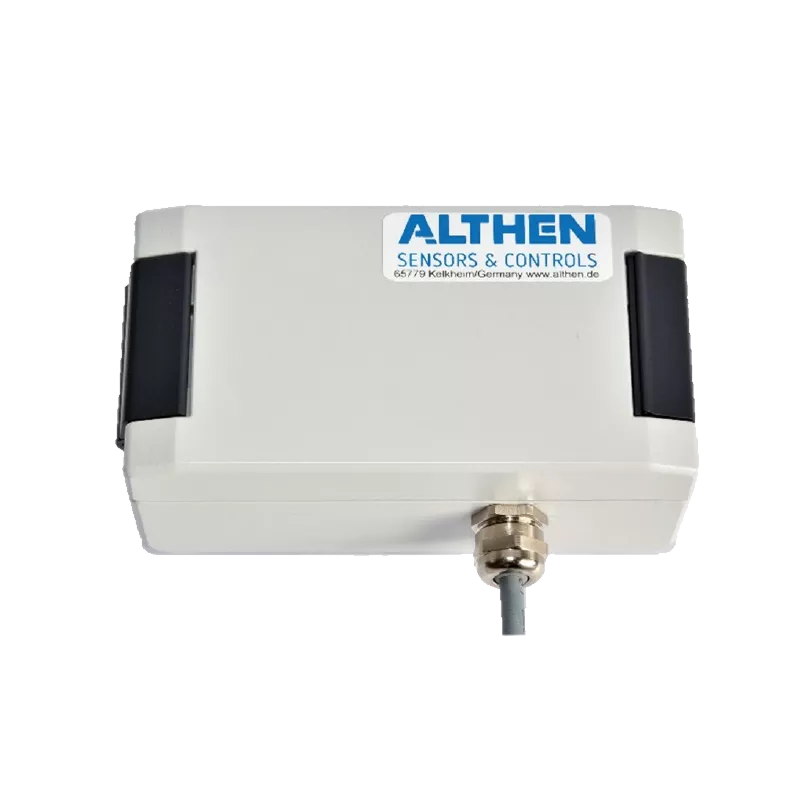

NM2-IP2-2L Tilt Measuring System
Dual axis tilt measuring system in a compact aluminium enclosure
Key features
- Measuring range ±3° up to ±45° per axis
- Accuracy ±0.1° (up to ±10°), ±0.2° (up to ±30°),±0.25° (up to ±45°)
- Analogue output 4 - 20 mA (2-wire-technology)
- Supply voltage 18 - 28 VDC
About the NM2‑IP2‑2L Tilt Measurement System
The NM2‑IP2‑2L is an industrial, dual-axis tilt measurement system for precise detection of tilt angles along both X and Y axes. It combines two contactless tilt sensors with dedicated electronics to deliver reliable and accurate measurement data in harsh industrial environments.
The system is designed for base mounting and is ideal for applications requiring two-dimensional tilt monitoring, such as machinery, plants, and automation processes.
The selectable tilt range is between ±3° and ±45° per axis, depending on the version. The dual analog outputs (4 … 20 mA) in 2-wire technology allow easy integration into standard control and evaluation systems.
Housed in a robust, EMC-protected aluminum die-cast enclosure with IP66 protection, the system resists dust, moisture, and mechanical stress, ensuring reliable operation even under demanding industrial conditions.
Technical Highlights
- Dual-axis tilt measurement (X and Y axes)
- Tilt range: ±3° to ±45° per axis
- Analog outputs: 4 … 20 mA (2-wire technology)
- High accuracy (e.g., ±0.1° up to ±10°)
- Supply voltage: 18 … 28 VDC
- Frequency range: approx. 0.5 Hz
- Protection class: IP66
- Robust aluminum die-cast housing
- Low cross-axis sensitivity < 1.5 %
- Operating temperature: −20 °C … +60 °C
Typical Applications
The NM2‑IP2‑2L is ideal for dual-axis tilt monitoring in:
- Machine and plant monitoring
- Positioning systems
- Construction and conveyor technology
- Automation and control
- Test and monitoring systems
The NM2‑IP2‑2L features dual-axis measurement, high accuracy, easy integration via standard analog outputs, and a robust IP66 enclosure, making it perfect for demanding industrial applications.
Do you need this sensor for your next project?
Request a no-obligation quote or send us your contact details for a free, no-obligation consultation. Our sales engineers will then contact you within a maximum of 1 to 2 working days.
Product downloads
Talk to our experts
Not exactly what you are looking for? We offer standard sensors, but can also help you with sensors adapted for you or a fully customised measurement solution. Contact us for advice or pricing.
Talk to an expertTechnical Specifications
| Specification | Value |
|---|---|
| Accuracy at 23°c | Up to ±10°: ±0.1° ; Up to ±30°: ±0.2° ; Up to ±45°: ±0.25° |
| Analogue output / burden | 4 - 20 mA (2-wire), max burden depending on supply voltage |
| Cross-sensitivity | < 1.5% at 30° |
| Dimensions (w x h x d) | ca. 160 x 65 x 86 mm (without EMC cable gland) |
| Electrical connection | M16 x 1.5 EMC cable glands on internal spring-cage terminal blocks |
| Enclosure | EMC-safe aluminium die-cast enclosure |
| Frequency range (-3db) | 0.5 Hz |
| Number of measuring axis | 2 |
| Power consumption | ca. 2 W |
| Preferred measuring range | ±3°, ±5°, ±10°, ±15°, ± 20°, ±30°, ±45° (other measuring ranges for both axis as well as different measuring ranges for each axis (e.g. X: ±30° Y: ±3°) on request possible) |
| Protection class | IP66 |
| Supply voltage | 18 - 28 VDC |
| Temperature, operating | -20 to +60 °C |
| Temperature, storage | -20 to +60 °C |
| Weight | ca. 1000 g |
